3302-50概述

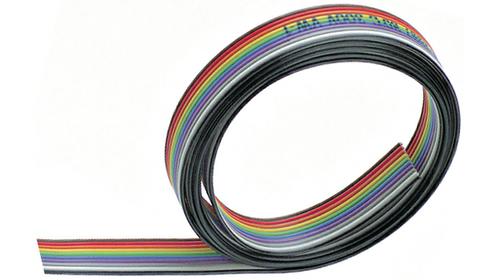

3M 3302-50 带状电缆, 彩色编码扁平, 多重, 50 芯, 28 AWG, 0.072 mm², 100 ft, 30.5 m
The 3302/50 is a 100ft 50-conductor color-coded Flat Ribbon Cable, 28AWG wire on 0.050-inch centers permits mass termination to a broad line of IDC connectors. The 3302 series flat cable is made of tinned copper conductor, PVC jacket.
- .
- Stranded wire provides flexibility and extended product life
- .
- Zippable for branching or discrete termination
- .
- 10 Repeated color-coding for wire identification
- .
- 105R Unbalanced characteristic impedance
- .
- VW-1 Flammability rating
3302-50中文资料参数规格
技术参数
线规 28 AWG
额定电压DC 300 V
额定电压AC 300 V
绝缘电阻 1000 MΩ
电容 46.2 pF
易燃性等级 UL VW-1
芯数 50
额定电压 300 V
封装参数
封装 100
引脚间距 1.27 mm
外形尺寸
封装 100
引脚间距 1.27 mm
物理参数
导体材质 Tinned Copper
外壳材质 PVC
其他
产品生命周期 Active
制造应用 Industrial, Computers & Computer Peripherals, 计算机和计算机周边, 工业
符合标准
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
