39100-1503

39100-1503图片1
39100-1503图片2
39100-1503图片3
39100-1503图片4
39100-1503图片5
39100-1503图片6
39100-1503图片7
39100-1503概述

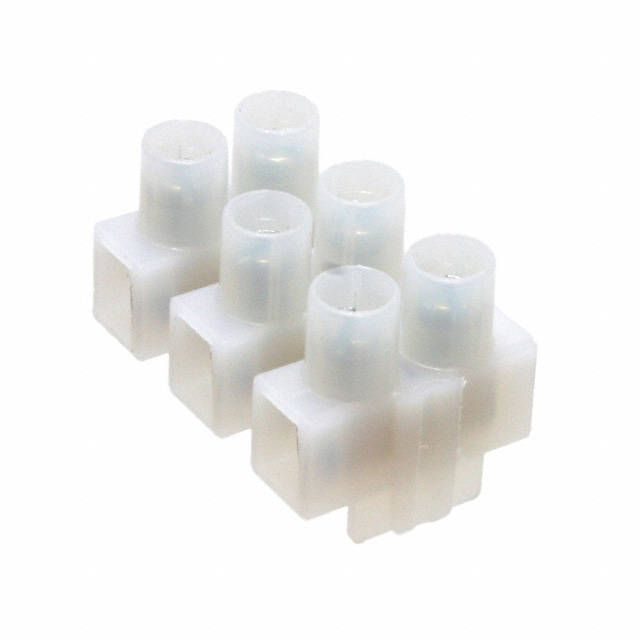

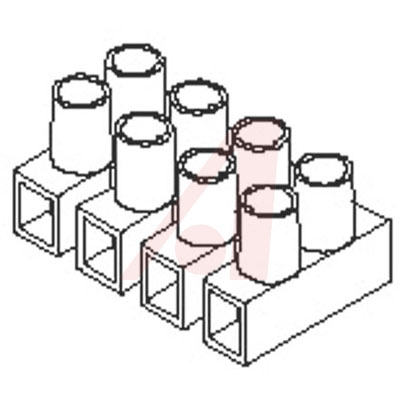

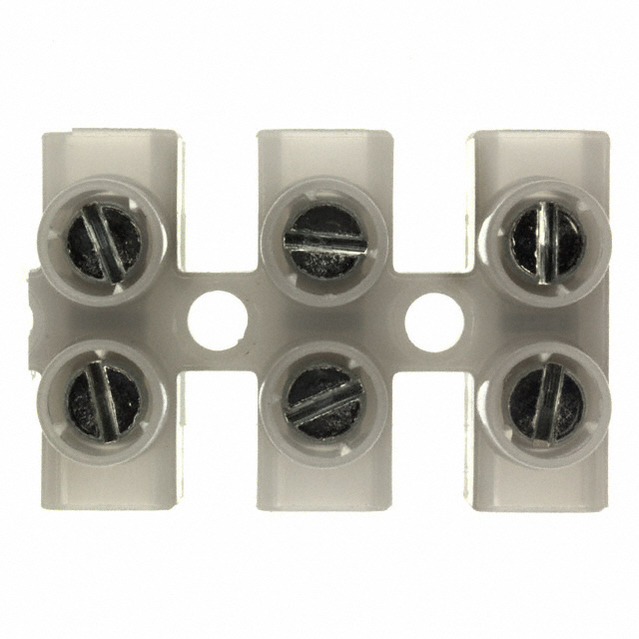

MOLEX  39100-1503  接线端子块, 欧式, 3路, 14-6AWG

** 39100 BEAU Eurostyle Terminal Strips**

The 39100 Series BEAU Eurostyle terminal strips are designed for wire-to-wire applications. They are single piece construction with a horizontal entry angle. There are many variations to choose from depending on whether the application requires a low profile, standard design or even the number of contacts required.


e络盟:
MOLEX  39100-1503  接线端子块, 欧式, 3路, 14-6AWG


Allied Electronics:
.591 beau eurostyle, twoscrew terminal strip, 3 position


Chip1Stop:
Conn Eurostyle Block 6 POS 15mm Screw ST Cable Mount 65A/Contact Eurostyleâ„¢


39100-1503中文资料参数规格
技术参数

触点数 3

触点电镀 Nickel

额定电流 65 A

排数 2

无卤素状态 Low Halogen

方向 Vertical

电路数 3

易燃性等级 UL 94 V-2

针脚数 3

额定电压 600 V

封装参数

安装方式 Screw

引脚间距 15.0 mm

外形尺寸

长度 40 mm

宽度 28 mm

高度 26.5 mm

引脚间距 15.0 mm

物理参数

外壳颜色 Natural

触点材质 Brass

外壳材质 Nylon

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买39100-1503
型号: 39100-1503
制造商: Molex 莫仕
描述:MOLEX  39100-1503  接线端子块, 欧式, 3路, 14-6AWG
