38L142C

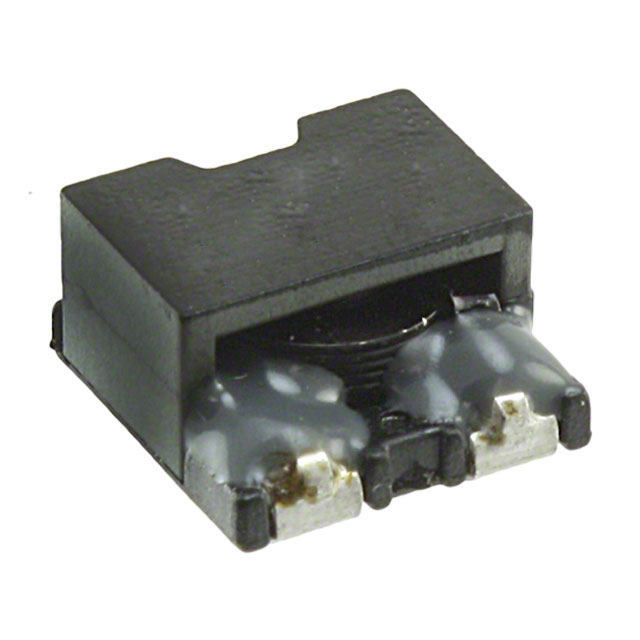

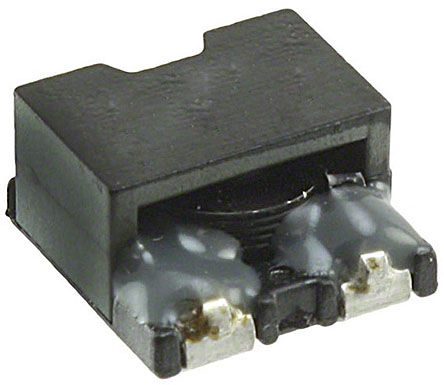

MURATA POWER SOLUTIONS  38L142C.  电感, 1.4uH, 12A, 20%, SMD

3800 系列扁平线圈绕线器

Murata 电源解决方案 3800 系列包括一系列扁平线圈绕线功率电感器。 这些表面安装扁平线圈电源电感器适合用于高电流和低损失较为重要的应用，比如等离子显示屏和便携式计算机。

### 特点

表面安装

高电流低 DCR

与拾放兼容

J-STD-020D 回流

UL94 V-0 封装材料

向后兼容 Sn/pb 焊接系统

符合 RoHS

得捷:
FIXED IND 1.4UH 12A 3.7 MOHM SMD

欧时:
Murata 3800 系列 1.4 μH 绕线贴片电感器 38L142C, ±20%容差, 12A Idc, 3.7mΩ最大直流电阻

e络盟:
电感, 1.4uH, 12A, 20%, SMD

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power 38L142C surface mount inductor from Murata Power Solutions is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. This device utilizes wirewound technology. It has an inductance of 1.4u H. This SMD inductor has a maximum DC current of 12 A with a maximum resistance of 3.7m Ohm. This product is 10.4 mm long, 5.6 mm tall and 10.4 mm deep. Its test frequency is 100K Hz.

安富利:
Ind Power Wirewound 1.4uH 20% 100KHz 12A T/R

Verical:
Inductor Power Wirewound 1.4uH 20% 100KHz 12A 0.0037Ohm DCR T/R

Newark:
# MURATA POWER SOLUTIONS  38L142C  Surface Mount Power Inductor, 3800 Series, 1.4 µH, 12 A, 15 A, Unshielded, 3700 µohm
