3110MS-12W-B30-A00

3110MS-12W-B30-A00图片1

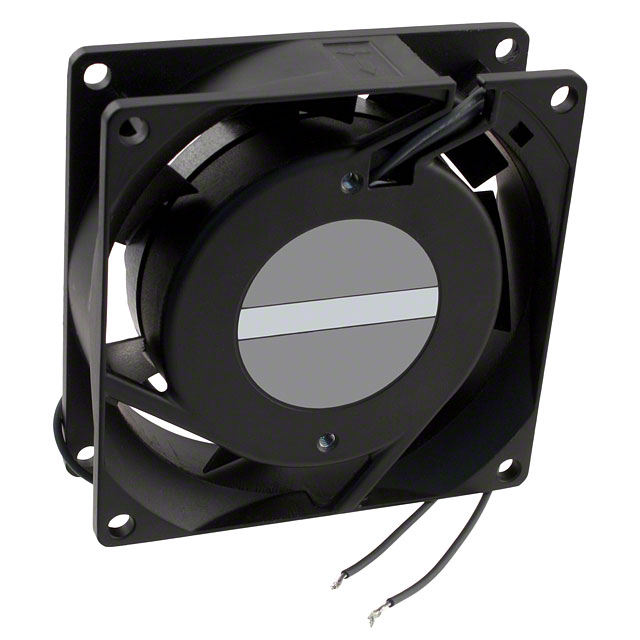

3110MS-12W-B30-A00图片2
3110MS-12W-B30-A00图片3
3110MS-12W-B30-A00图片4

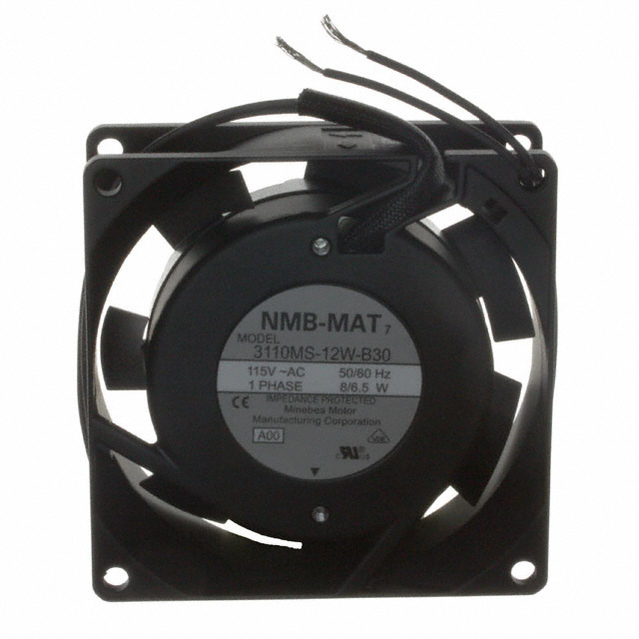

3110MS-12W-B30-A00图片5
3110MS-12W-B30-A00图片6
3110MS-12W-B30-A00图片7
3110MS-12W-B30-A00概述

轴流风扇, 80MM, 115V, 110MA

The is a 115VAC Axial Fan with ball bearing and wire leaded power connection. This M-series axial fan comes with aluminum casing and polycarbonate glass fiber-containing impeller. UL3266, CSA CL 1252, 22AWG lead wire. Counter-clockwise direction of rotation, air out over struts. Shaded-pole induction motor structure, standard special control function and standard model flanged mounting. Can be an integral part of a cooling solution for heat-generating purpose.

3110MS-12W-B30-A00中文资料参数规格
技术参数

电源电压DC 115 V

额定电流 110 mA

额定功率 6.50 W

额定电压 115 VAC

电源电压 115 V

外形尺寸

长度 80 mm

宽度 25 mm

高度 80 mm

物理参数

重量 239.95 g

工作温度 -10℃ ~ 70℃

其他

产品生命周期 Active

制造应用 HVAC

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3110MS-12W-B30-A00
型号: 3110MS-12W-B30-A00
制造商: NMB Technologies
描述:轴流风扇, 80MM, 115V, 110MA
