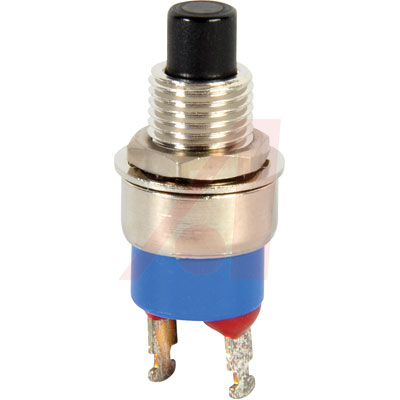

Switch Push Button N.O. SPST Round Plunger 3A 125VAC 28VDC Solder Lug Panel Mount
Single pole single throw normally open or normally closed pushbuttons with solder lug or pc terminals. Ratings up to 3 amps, UL available plus long life cycles.Features
* **Compact Size**
* **Dry Circuit Through Power Ratings**
* **Panel, Panel and PC and PC Mounting Models**
* **Operating Temperture: –30°C to +85°C**
Specification
* **Max. Current/Voltage Rating with Resistive Load:**
** — Gold Over Nickel Brass 0.4 VA - 20 V Max.**
** — Coin Silver Contacts: 1 A 125 VAC or 28 VDC, 0.5 A 250 VAC, 3 A 125 VAC or 28 VDC **
* **Electrical Life: **
** — 300 Series Q Coin Silver 1 A 125 VAC or 28 VDC: 250,000 Cycles**
** — 300 Series Q Coin Silver 3 A 125 VAC or 28 VDC: 10,000 Cycles**
** — 300 Series B Gold 0.4 VA Max. at 20 V: 250,000 Cycles**
** — 400 Series Q Coin Silver 1 A 125 VAC or 28 VDC: 250,000 Cycles**
** — 400 Series Q Coin Silver 3 A 125 VAC or 28 VDC: 10,000 Cycles**
** — 400 Series B Gold 0.4 VA Max. at 20 V: 250,000 Cycles
额定电压DC 28 V
额定电压AC 125 V
额定电流 1 A
触点类型 SPST-NO
额定电流Max 3 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 125 VAC
额定电压DC Max 28 V
额定电压AC Max 125 V
接触电阻Max 10 mΩ
安装方式 Solder Lug, Panel
封装 -
高度 23.76 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 10000 Cycles
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
