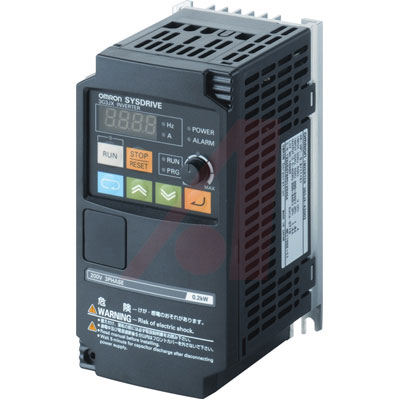

2.2 kW 逆变器驱动, 400Hz, 13 A, 200 → 240 V 交流, IP20, 使用于2.2 kW 交流电动机
With "s new 3G3JX Series AC drive, manufacturers have the features, capacity and ease of use to succeed in the low horsepower market. This environmentally friendly product is available in single- and three-phase 240 V and three-phase 480 V models, up to ten horsepower. The PWM algorithm employed by the 3G3JX utilizes micro-surge voltage suppression that allows it to be used with motors that are not rated for AC drive duty service. Programming the 3G3JX is simple, using the built-in potentiometer and new menu structure.
**Features:**
* V/Hz Control Ideal for Simple, General-Purpose Applications with Fans, Blowers and Pumps
* Top and Bottom Wiring Enables Simple Contactor Replacement
* Side-By-Side Mounting Reduces Panel Space Requirements
* Micro-Surge Voltage Suppression Reduces Motor Burn Out, Allows Use of Most General-Purpose Induction Motors
* Automatic Energy Saving Function Significantly Reduces Energy Usage on Constant Speed Fan and Pump Applications and Helps Reduce Utility Bills
* Over-Current and Overvoltage Trip Suppression Reduces Nuisance Tripping
* Restart Function Allows Automatic Recovery from Momentary Power Loss
* Built-In PID Function Eliminates the Need for External Controller
* Built-In RS-485 Modbus Communications
* Built-In Radio Noise Filter 400 V Models for Noise Suppression
* Optional CE Filter
* RoHS Compliant for Environmental Responsibility in Recycling and Disposal
* Wide Selection of Models: 1⁄4 to 3 HP, 240 VAC Single-Phase; 1⁄4 to 10 HP, 240 VAC 3-Phase; 1⁄2 to 10 HP, 480 VAC 3-Phase
**Applications:**
* Conveyors
* Fans
* Pumps
* Mixers
