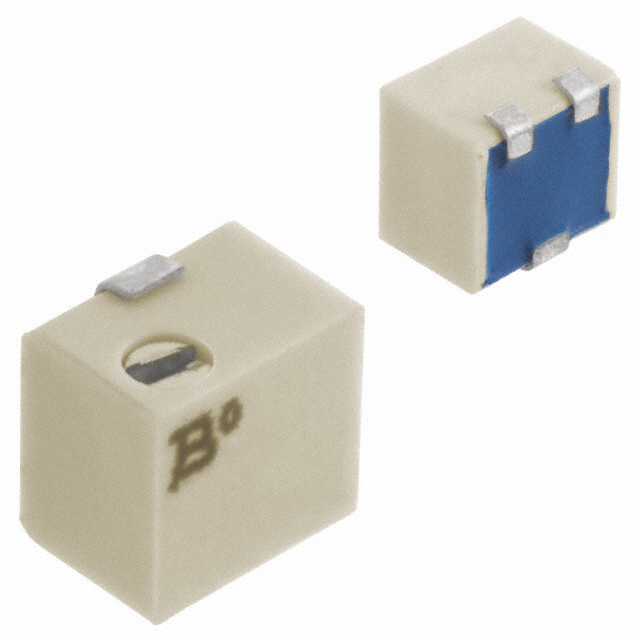

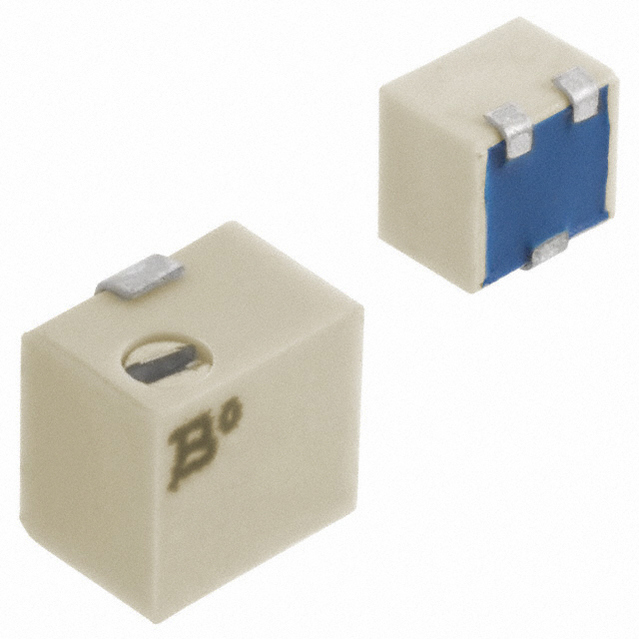

BOURNS 3214J-1-504E 微调电位器, 500KΩ, 10%, 5转, SMD
0.25W,1/4W J 引线 表面贴装型 微调电位计 金属陶瓷 匝 侧面调节
艾睿:
Not sure what resistance value you need? No problem, applying this 3214J-1-504E potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 500K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 4.8 mm long, 3.71 mm tall and 5 mm deep. It has a tolerance of 10%. The 3214J-1-504E part has a j-hook termination style. This part has an operating temperature of -65 to 150 °C. This device is made with cermet technology.
Allied Electronics:
5-Turn SMD CermetTrimmer Resistor w/J-Hook Term, 500kOhm +/-10% 0.25W +/-100ppm/C
安富利:
Res Cermet Trimmer 500K Ohm 10% 1/4W 5ElecTurn 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD Embossed T/R
Chip1Stop:
Res Cermet Trimmer 500K Ohm 10% 0.25W1/4W 5ElecTurn 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD Embossed T/R
Newark:
# BOURNS 3214J-1-504E Trimmer Potentiometer, Multiturn, 500 kohm, 250 mW, ± 10%, 3214J Series, 5 Turns
MASTER:
Res Cermet Trimmer 500K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD T/R
容差 ±10 %
额定功率 250 mW
电阻 500 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount

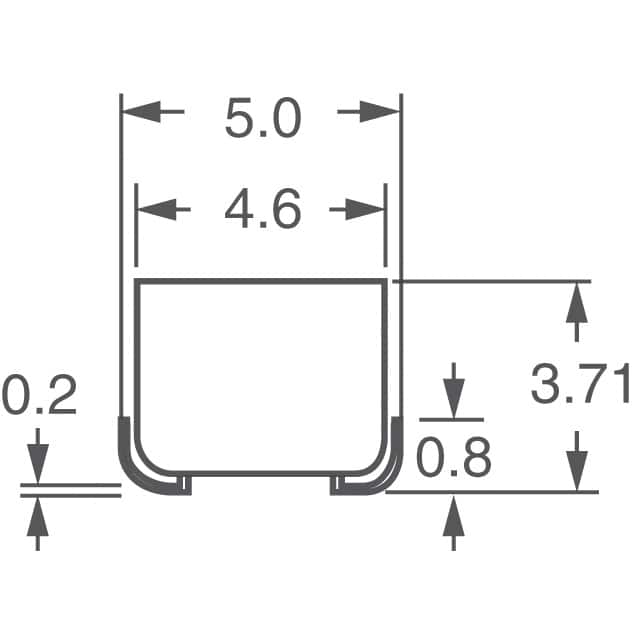

封装 Square - 0.190" L x 0.180" W x 0.139" H 4.80mm x 4.60mm x 3.69mm
长度 4.8 mm
宽度 5 mm
高度 3.71 mm
封装 Square - 0.190" L x 0.180" W x 0.139" H 4.80mm x 4.60mm x 3.69mm
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
