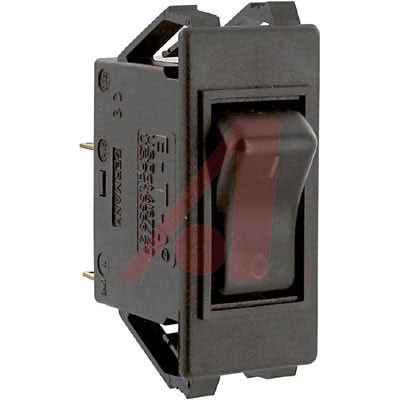

3120-F521-H7T1-W01X-16A

断路器 An extremely versatile range of rocker switch/thermal circuit breakers

The is a 2-pole thermally protected rocker-actuated Circuit Breaker combination is an ON/OFF switch with integral over-current protection S-type to CBE to EN/IEC 60934. The trip element is a bimetal. It is ideally suited for overload protection of pumps, transformers and cables. It features P7, terminals 11 and 21 with flat head screws M3.5 - standard for units with under-voltage release module.

.

Flange mounting snap-in frame

.

To fit mounting cut-out 44.5 x 22mm standard frame

.

Thermal trip curve

.

Rocker actuator for frame size F3 and F5

.

Rocker black opaque colour and illumination

.

Reliable switching behaviour positively trip-free

.

Convenient snap-in mounting

.

1mm Mounting frame collar height
