瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
得捷:
TVS DIODE 42VWM 72VC P600
立创商城:
Vrwm:42V 30kW
贸泽:
ESD 抑制器/TVS 二极管 TVS Hi Power Diode 30KPA Axial
艾睿:
Diode TVS Single Uni-Dir 42V 30KW 2-Pin Case P-600 T/R
Chip1Stop:
Diode TVS Single Uni-Dir 42V 30KW 2-Pin Case P-600 T/R
Newark:

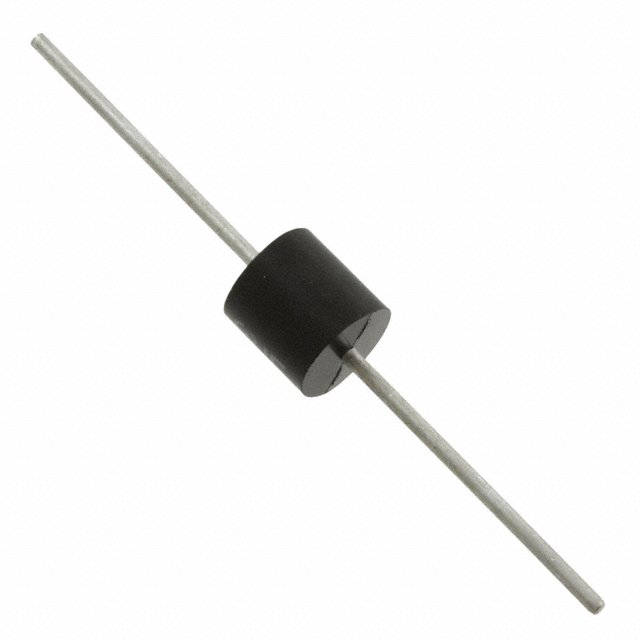

# LITTELFUSE 30KPA42A TVS Diode, 30KPA Series, Unidirectional, 42 V, 72 V, Axial Leaded, 2 Pins
工作电压 42 V
击穿电压 46.9 V
电路数 1
钳位电压 72 V
测试电流 10 mA
最大反向击穿电压 46.9 V
脉冲峰值功率 30000 W
最小反向击穿电压 46.9 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 P-600
长度 9.1 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
