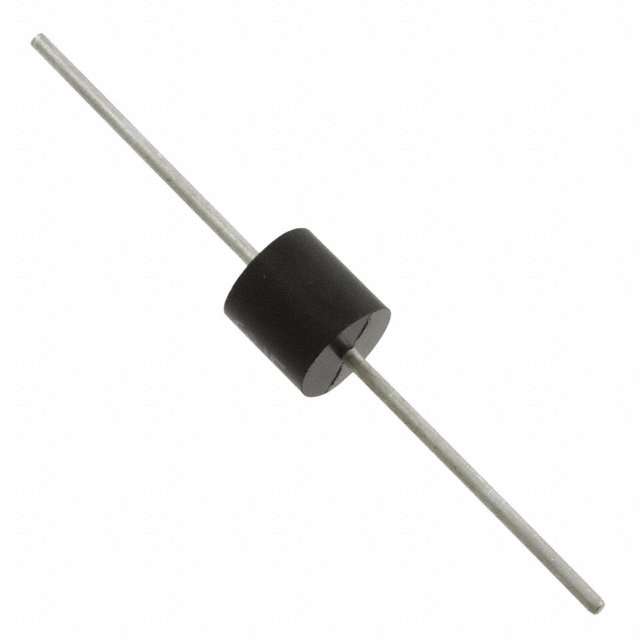

30KPA48CA

瞬态电压抑制二极管轴向引线 - 30000W Transient Voltage Suppression Diodes Axial Leaded - 30000W

Description

The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

  TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

得捷:
TVS DIODE 48VWM 81.6VC P600

立创商城:
Vrwm:48V 30kW

贸泽:
ESD 抑制器/TVS 二极管 TVS Hi Power Diode 30KPA Axial

艾睿:
Save yourself hassle by equipping your device with Littelfuse&s;s 30KPA48CA TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 5 mA. Its peak pulse power dissipation is 30000 W. This device&s;s maximum clamping voltage is 81.6 V and minimum breakdown voltage is 53.6 V. Its maximum leakage current is 300 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 48V 30KW 2-Pin Case P-600 T/R

Newark:
# LITTELFUSE  30KPA48CA  TVS Diode, 30KPA Series, Bidirectional, 48 V, 81.6 V, Axial Leaded, 2 Pins
