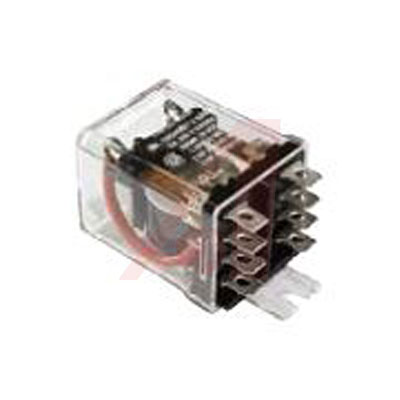

Electromechanical Relay 24VAC 54Ω 30A DPDT 38.89x35.72x73.06mm Flange Power Relay
30 A , Solder Type Terminal, 300 Series High Current & High Voltage Power Relays
* Optional blowout magnet
* ARC barriers between contacts
The contact is made up of silver alloy gold flashed material.
MASTER:
Electromechanical Relay 24VAC 54Ohm 30A DPDT 38.89x35.72x73.06mm Flange Power Relay
Online Components:
Electromechanical Relay 24VAC 54Ohm 30A DPDT 38.89x35.72x73.06mm Flange Power Relay
Electro Sonic:
Electromechanical Relay 24VAC 54Ohm 30A DPDT 38.89x35.72x73.06mm Flange Power Relay
额定电流 30 A
触点类型 DPDT
功耗 2.00 W
线圈电压 24 VAC
线圈电压AC 24 V
线圈电阻 54 Ω
载流 30.0 A
额定电流Max 30 A
工作温度Max 60 ℃
工作温度Min -30 ℃
额定电压 600 VAC
额定电压DC Max 28 V
额定电压AC Max 300 V
安装方式 PC Board, Solder
引脚数 8
宽度 38.89 mm
高度 63.5 mm
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 6000 Cycles
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
