307-020-520-201

307 系列 板对板 插座 0.156 英寸 通孔 边卡 连接器

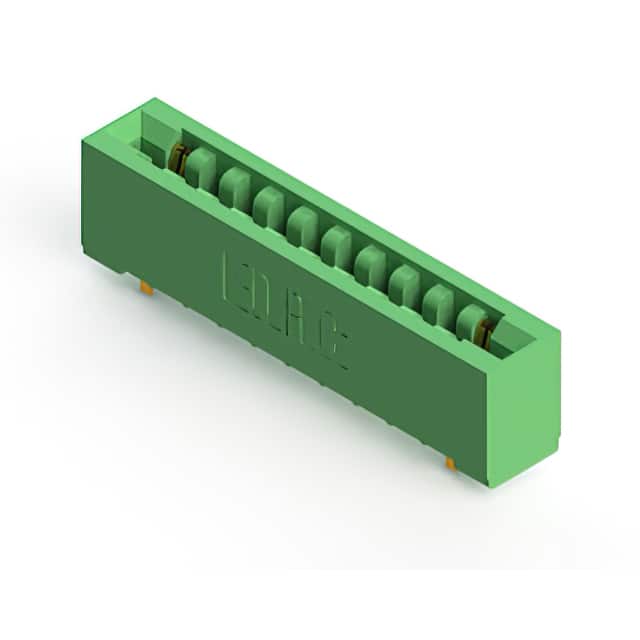

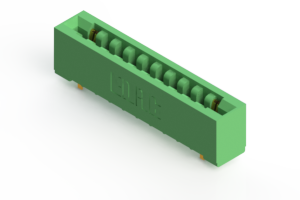

The is a 20-position 1-row Card Edge Connector with gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It has PC-tail contact termination. It accepts 0.062-inch 1.57mm nominal thickness PC board. It accepts between contact and in-contract polarizing keys.

得捷:
CONN EDGE DUAL FMALE 20POS 0.156

贸泽:
标准卡缘连接器 20C DBL ROW W/O MOUNTING LUGS

Verical:
Conn Card Edge SKT 20 POS 3.96mm Solder ST Thru-Hole

Newark:
Connector, Card Edge, 20 Contacts, Receptacle, 3.96 mm, Through Hole

MASTER:
307 Series .156" 3.96mm contact spacing Card Edge Connector with 20 P.C Tail type contacts. The tails are .046" x .013" 1.17mm x 0.33mm thick and .213" 5.41mm long in a Double Row formation, reading both sides of the daughter board. The Insulator

Electro Sonic:
307 Series .156" 3.96mm contact spacing Card Edge Connector with 20 P.C Tail type contacts. The tails are .046" x ...
