3299P-1-204LF

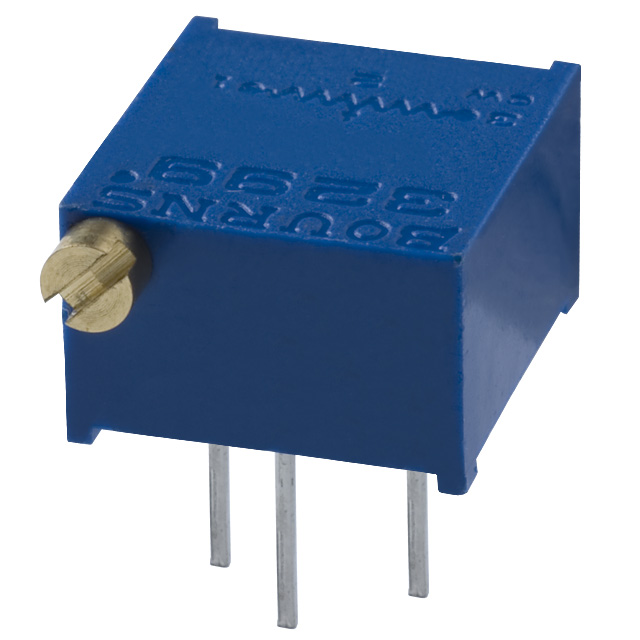

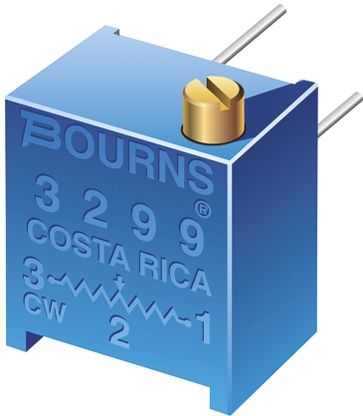

BOURNS  3299P-1-204LF  微调电位器, 200KΩ, 10%, 25转, 通孔安装

Low noise, high performance 3⁄8" square trimmer. Infinite resolution cermet element. Low temperature coefficient ±100 ppm/°C over entire temperature and resistance range. Sealed to withstand wave soldering and cleaning processes.

得捷:
TRIMMER 200KOHM 0.5W PC PIN SIDE

欧时:
Bourns 25 转 通孔 微调电阻器 3299P-1-204LF, 带焊针接端, 200kΩ ±10%, 0.5W, ±100ppm/°C

艾睿:
Not sure what resistance value you need? No problem, applying this 3299P-1-204LF potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 200K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3299P-1-204LF part has a pin termination style. This product is 9.53 mm long, 6.1 mm tall and 11.55 mm deep. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%.

Allied Electronics:
3299P 25 turns Cermet Trimmer 200K 10%

安富利:
Res Cermet Trimmer 200K Ohm 10% 1/2W 25ElecTurn 2.29mm 9.53 X 11.55 X 6.1mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 11.55 X 6.1mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 11.55 X 6.1mm Pin Thru-Hole Tube
