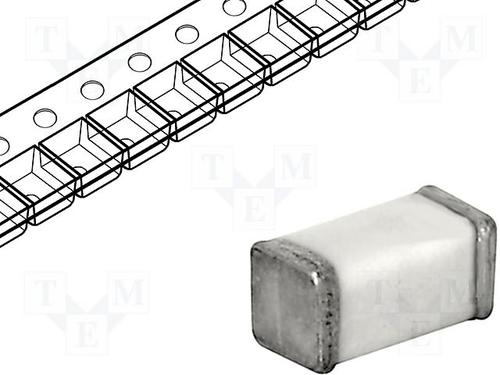

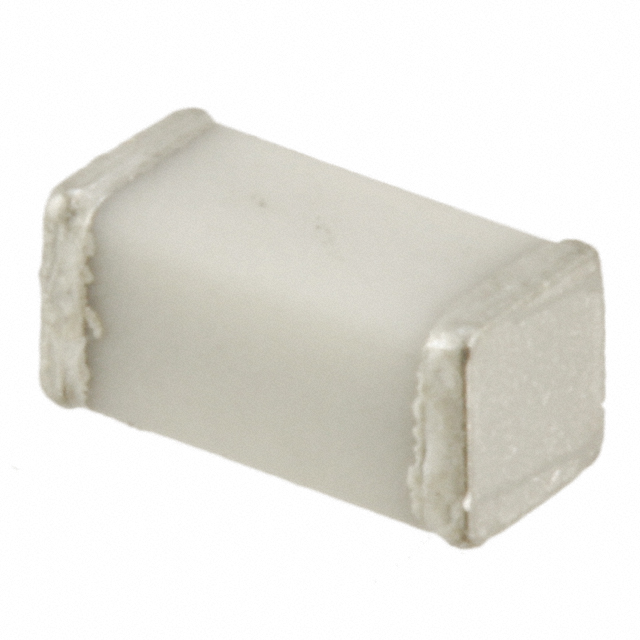

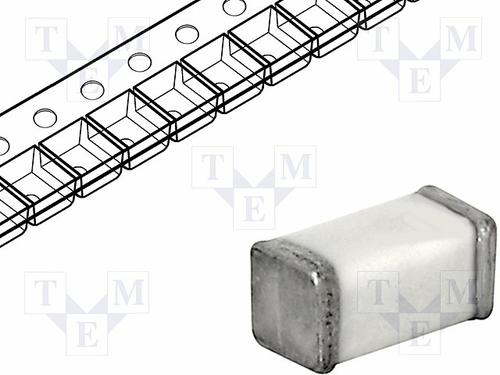

Fuse: fuse; ultra rapid; ceramic; 2.5A; 125VAC; 125VDC; SMD; nickel
** MGA Series**
Schurter MGA series surface mount fuses, with quick-acting characteristics protect electronic systems from overcurrent’s and short-circuits. The MGA series fuses feature high breaking capacity of up to 200A at rated voltage. Applications for the MGA Surface Mount Fuses from Schurter include protection of power supplies, medical equipment, and devices for home and industrial use.
触点电镀 Tin
额定电压DC 125 V
额定电压AC 125 V
额定电流 2.5 A
电阻 0.0295 Ω
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
封装 SMD-2
长度 3.2 mm
宽度 1.55 mm
高度 1.55 mm
封装 SMD-2
触点材质 Nickel
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
