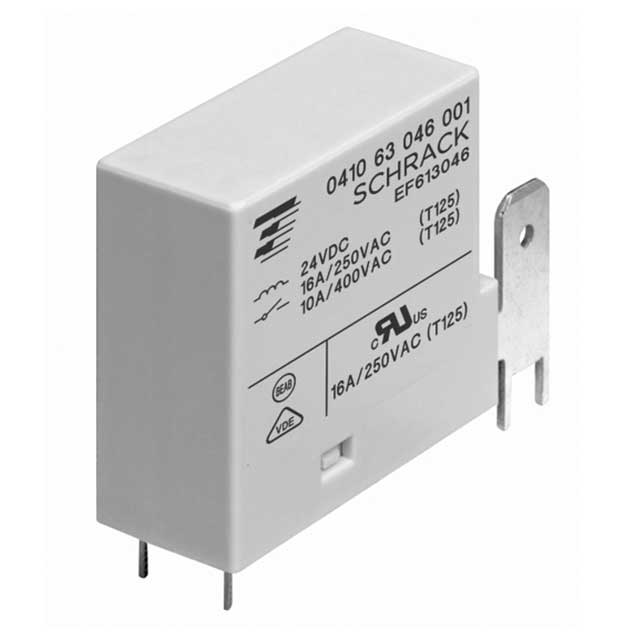

Electromechanical Relay SPST-NO 25A 12VDC 400Ω Through Hole
Power Relay 12VDC 16A SPST-NO40.5x12.5x28.5mm THT
Product Highlights
410 63 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 16 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 16A 12V
艾睿:
Electromechanical Relay 12VDC 400Ohm 25A SPST-NO 40.5x12.5x28.5mm THT Power Relay
Chip1Stop:
Electromechanical Relay 12VDC 400Ohm 25A SPST-NO 40.5x12.5x28.5mm THT Power Relay
Verical:
Electromechanical Relay 12VDC 400Ohm 25A SPST-NO 40.5x12.5x28.5mm THT Power Relay
Newark:
# AMP - TE CONNECTIVITY 3-1415410-4 0410 63 050 001 New
MASTER:
Power Relay 12VDC 16A SPST-NO40.5x12.5x28.5mm THT
Powell:
Industrial Relays General Purpose
Online Components:
Power Relay 12VDC 16A SPST-NO40.5x12.5x28.5mm THT
Electro Sonic:
Power Relay 12VDC 16A SPST-NO40.5x12.5x28.5mm THT
输入电压DC 12.0 V
跌落电压 700 mV
触点额定电流 16.0 A
线圈电压 12 VDC
线圈电流 30 mA
线圈功率DC 360 mW
线圈电阻 400 Ω
线圈电压DC 12 V
开关电流Max 16 A
安装方式 Through Hole
长度 40.5 mm
宽度 12.5 mm
高度 28.5 mm
触点材质 Silver Cadmium Oxide
工作温度 -20℃ ~ 125℃
产品生命周期 Superseded
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8466100110
