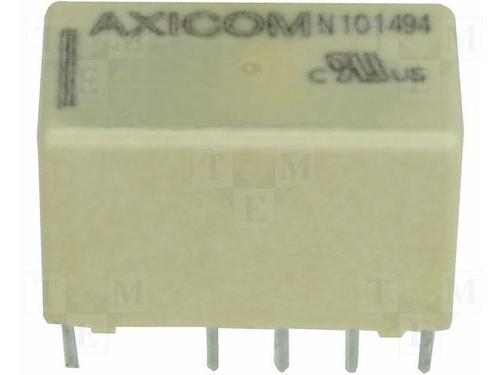

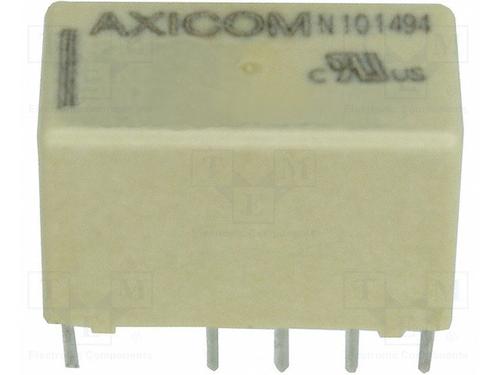

信号继电器, 5 VDC, DPDT, 2 A, P2/V23079系列, 通孔安装, 闭锁双线圈
The P2/V23079 series Signal Relays with DC coil. This V23079-series signal relay 2-form-C DPDT Au-plated AgNi bifurcated contact. SMT long terminals, high sensitivity for low power consumption 140mW/70mW. Single coil version with surge voltage resistance between contact and coil 2.5kV 2/10µs meets the Telcordia Requirement GR-1089, 1.5kV 10/160µs meets FCC Part 68.
- .
- Standard telecom relay
- .
- SMT version, monostable DC coil
- .
- Slim line relay
- .
- Immersion cleanable
- .
- -40 to 85°C Operating temperature range
- .
- Wash tight RT III environmental protection rating
触点电镀 Gold
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 1 GΩ
输入电压DC 5.00 V
触点类型 DPDT
功耗 130 mW
触点额定电流 2 A
线圈电压 5 VDC
线圈电流 28.09 mA
线圈功率DC 140 mW
线圈电阻 178 Ω
载流 5.00 A
额定电流Max 2 A
线圈电压DC 5 V
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole

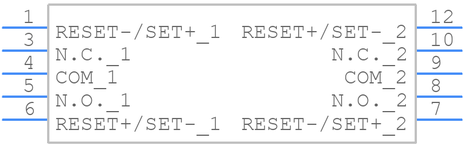

引脚数 10

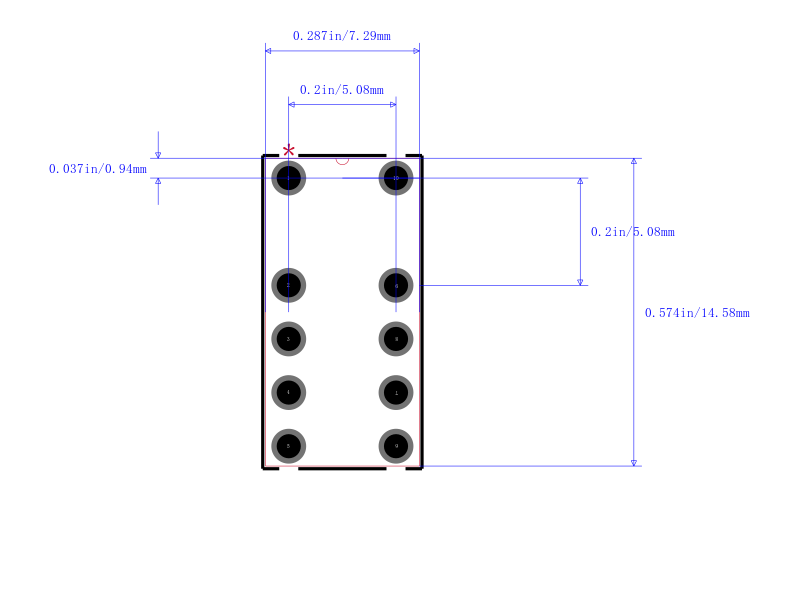

封装 DIP
高度 9.8 mm
封装 DIP
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Box
制造应用 车用, Audio, 测试与测量, 医用, Communications & Networking, Test & Measurement, 通信与网络, Automotive, 消费电子产品, Consumer Electronics, Medical, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3-1393788-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
V23079B1201B301 泰科 | 类似代替 | 3-1393788-3和V23079B1201B301的区别 |
DS2E-SL2-DC5V 松下 | 功能相似 | 3-1393788-3和DS2E-SL2-DC5V的区别 |
TX2-L2-5V 松下 | 功能相似 | 3-1393788-3和TX2-L2-5V的区别 |
