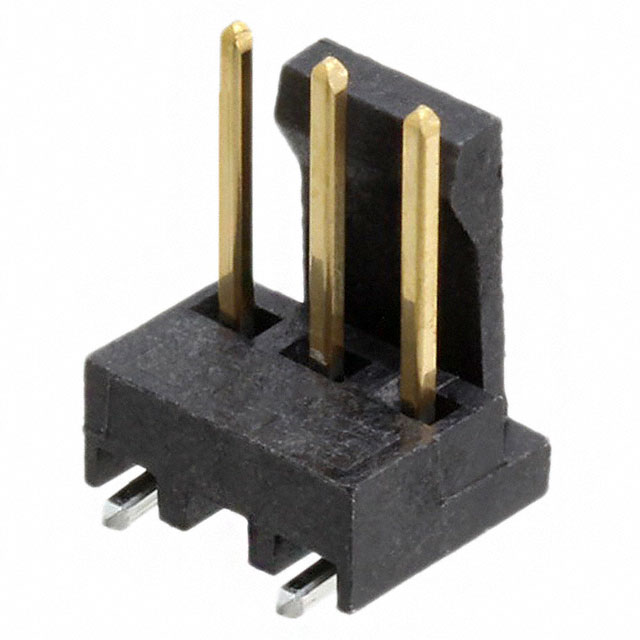

MTA-100 3 位置 表面贴装 单排 直 线对板 针座
03P MTA100 HDR ASSY SM 15AU LF
Product Highlights
MTA-100 Connectors
Number of Positions = 3
Mating Type = Header
Wire-to-Board Application
2.54 mm Contact Centerline Spacing
得捷:
CONN HEADER 3POS VERT .100 GOLD
艾睿:
TE Connectivity&s;s wire to board 3-647167-3 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. This product is 7.62 mm long, 10.54 mm tall and 6.36 mm deep. 3-647167-3 is housed in black nylon 4/6. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.
安富利:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Top Entry SMD Bag/Box
Online Components:
03P MTA100 HDR ASSY SM 15AU LF
Electro Sonic:
03P MTA100 HDR ASSY SM 15AU LF
触点数 3
触点电镀 Tin
额定电压AC 250 V
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 3
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
安装方式 Surface Mount
高度 10.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon 4/6
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
