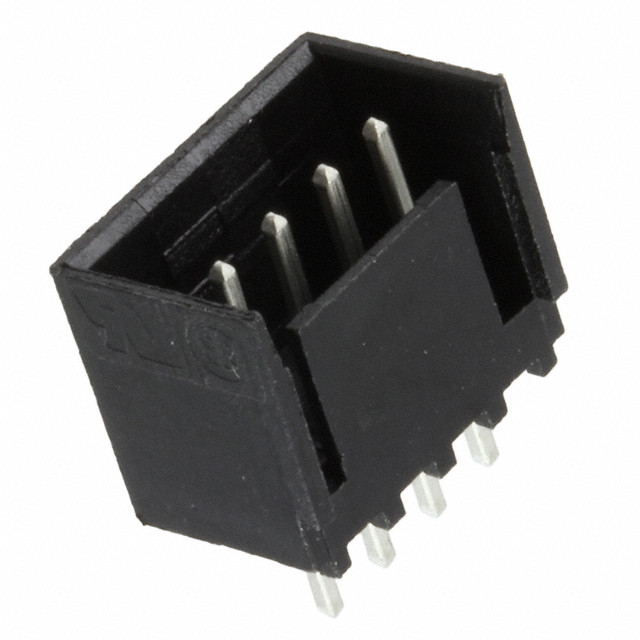

3-644893-4

CST-100 4 位置 通孔 单排 直 线对板 针座

针座 通孔 4 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 4POS 2.54MM

立创商城:
3-644893-4

艾睿:
Reduce safety concerns with this shrouded 3-644893-4 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with tin-lead. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 3-644893-4 is housed in black polyester. This product is 12.29 mm long, 10.41 mm tall and 7.95 mm deep.

安富利:
Conn Shrouded HDR 4 POS 2.54mm Solder ST Through Hole

Chip1Stop:
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 2.54mm Solder ST Top Entry Thru-Hole Package

MASTER:
CST-100 SHROUDED HEADER ASSEMBLY, FRICTION LOCK, STRAIGHT POST, TIN OR TIN LEAD PLATED

Online Components:
04P CST100 SHRD HDR ASSY LF

Electro Sonic:
04P CST100 SHRD HDR ASSY LF
