350650-1概述

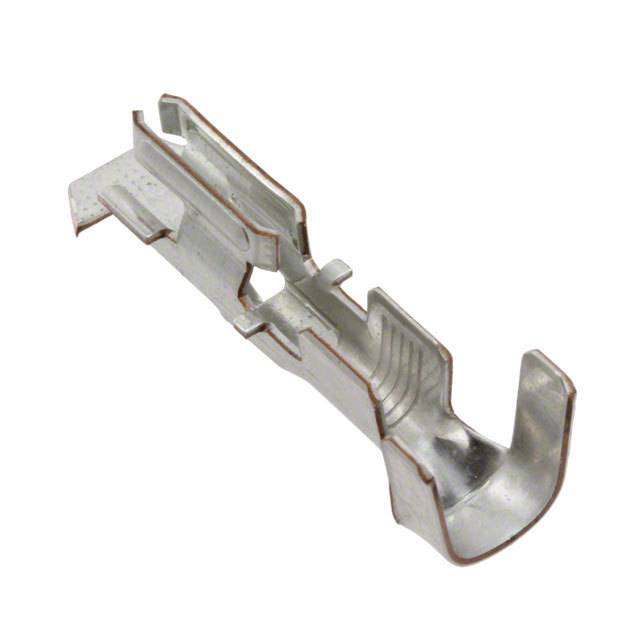

12-8 AWG 锡 大电流 商用 连接器

功率 无公型或母型之分 触点 锡 8-12 AWG 压接


立创商城:
350650-1


得捷:
CONN 8-12AWG CRIMP TIN


贸泽:
Heavy Duty Power Connectors HCC 12-18 025PTPHBZ


艾睿:
Need a strong connection for your wires? This 350650-1 connector contact from TE Connectivity is the most traditional form of connections binding. It has a straight body orientation. It has a socket type gender. This has a Connector Power connector. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 31.24 mm long, 10.54 mm tall and 10.54 mm deep. It uses the crimp termination method.


Allied Electronics:
Hermaphroditic PCB Connector Contact, Female, Crimp, Tin Plating


安富利:
Contact SKT Crimp ST Cable Mount Strip


Verical:
Contact PIN/SKT Crimp ST Cable Mount 8-12AWG T/R


Newark:
# AMP - TE CONNECTIVITY  350650-1  Contact, High Current Commercial Connectors, Phosphor Bronze, Tin Plated Contacts, 28 A


MASTER:
hermaphroditic high current terminal


Powell:
Power Wiring Devices


Online Components:
HCC 12-18 025PTPHBZ,LUBED


Electro Sonic:
HCC 12-18 025PTPHBZ,LUBED


350650-1中文资料参数规格
技术参数

触点数 1

线规 8AWG ~ 12AWG

触点电镀 Tin

额定电流 28 A

封装参数

封装 -

外形尺寸

高度 10.54 mm

封装 -

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册
