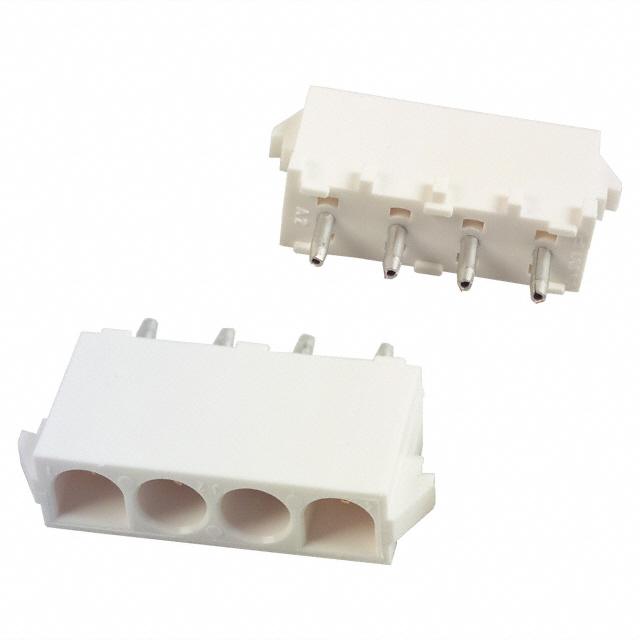

350826-2

Conn Power SKT 4POS 6.35mm Solder ST Thru-Hole 4 Terminal 1Port

* 4 Circuit, In-Line * Dimension : 1.050 - 26.67 * Pins and sockets can be intermixed in the same housing * Positive polarization * Rear cavity identification * Contacts completely enclosed in housings * Positive locking housings * Insulation capability to .200 [5.08] diameter * Removable, crimp snap-in contacts * Low contact mating force * Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes * Contacts available with pretin or gold plating * Dual locking lances provide optimum contact stability * Panel mount or free-hanging * Mate with Universal MATE-N-LOK II Housings * Available in UL 94V-O flame retardant material. * Not for interrupting current * Harness to PC Board capability using pin or socket headers * Pin and socket headers are available in both vertical and right-angle style * Solderability — headers meet MIL-STD 202 Method 208 * Contacts are on .250 [6.35] centerline spacing * Recognized under the Component Program of Underwriters Laboratories Inc. * Certified by Canadian Standards Association * Passed test by VDE under their Registration Number 3980/Continuous Surveillance
