37302C

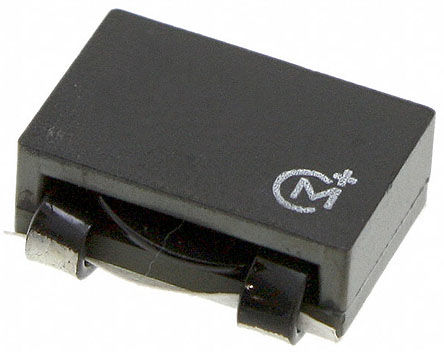

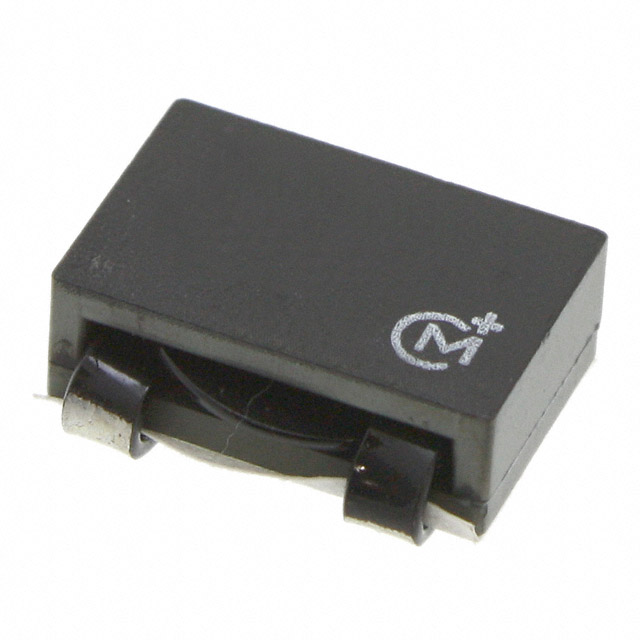

MURATA POWER SOLUTIONS  37302C.  电感, 3uH, 9A, 10%, SMD

3700 系列扁平线圈绕线器

Murata 电源解决方案 3700 系列包括一系列扁平线圈绕线电感器。 这些表面安装扁平线圈电源电感器适合用于高电流和低损失较为重要的应用，比如等离子显示屏和便携式计算机。

### 特点

表面安装

高电流低 DCR

与拾放兼容

J-STD-020D 回流

向后兼容 Sn/pb 焊接系统

符合 RoHS

欧时:
Murata 3700 系列 3 μH 绕线贴片电感器 37302C, ±10%容差, 9A Idc, 4.8mΩ最大直流电阻

得捷:
FIXED IND 3UH 9A 4.8 MOHM SMD

e络盟:
电感, 3uH, 9A, 10%, SMD

艾睿:
This power 37302C surface mount inductor from Murata Power Solutions is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 9 A with a maximum resistance of 4.8m Ohm. This product is 14.5 mm long, 5.8 mm tall and 11.5 mm deep. It has a tolerance of 10%. It has an inductance of 3u H. Its test frequency is 100K Hz.

安富利:
Ind Power Wirewound 3uH 10% 100KHz 9A T/R

Verical:
Inductor Power Wirewound 3uH 10% 100KHz 9A 0.0048Ohm DCR T/R

Newark:
# MURATA POWER SOLUTIONS  37302C  Surface Mount Power Inductor, 3700 Series, 3 µH, 9 A, 13 A, Unshielded, 4800 µohm
