39S103C

MURATA POWER SOLUTIONS  39S103C.  电感, 10UH, 5A, 20%, SMD, 整卷

3900 系列扁平线圈绕线器

Murata 电源解决方案 3900 系列包括一系列扁平线圈绕线功率电感器。 这些表面安装扁平线圈电源电感器适合用于高电流和低损失较为重要的应用，比如等离子显示屏和便携式计算机。

### 特点

表面安装

结构紧凑

高电流低 DCR

与拾放兼容

J-STD-020D 回流

UL94 V-0 封装材料

向后兼容 Sn/pb 焊接系统

符合 RoHS

得捷:
FIXED IND 10UH 5A 13.5 MOHM SMD

欧时:
Murata 3900 系列 10 μH 绕线贴片电感器 39S103C, ±20%容差, 5A Idc, 13.5mΩ最大直流电阻

e络盟:

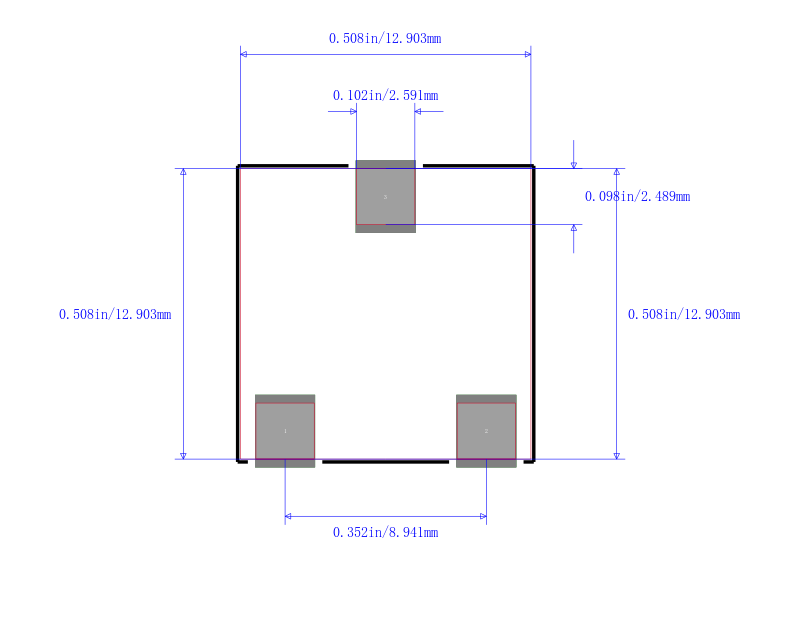

功率电感SMD, 10 µH, 5 A, 非屏蔽, 5 A, 3900 Series, 12.9mm x 12.9mm x 5.8mm

艾睿:
This power 39S103C surface mount inductor from Murata Power Solutions is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 5 A with a maximum resistance of 13.5m Ohm. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 12.9 mm long, 5.8 mm tall and 12.9 mm deep. Its test frequency is 100K Hz. It has an inductance of 10u H.

安富利:
Ind Power Wirewound 10uH 20% 100KHz 5A T/R

Verical:
Inductor Power Wirewound 10uH 20% 100KHz 5A 0.0135Ohm DCR T/R

Newark:
# MURATA POWER SOLUTIONS  39S103C  Surface Mount Power Inductor, 3900 Series, 10 µH, 5 A, 5 A, Unshielded, 0.0135 ohm
