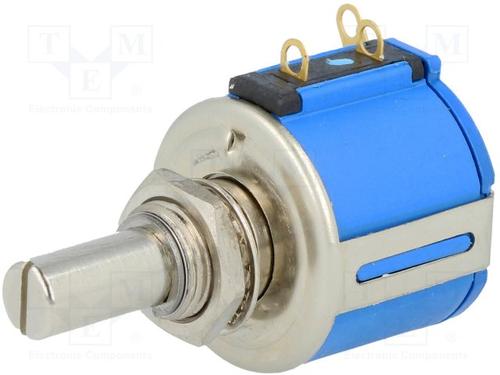

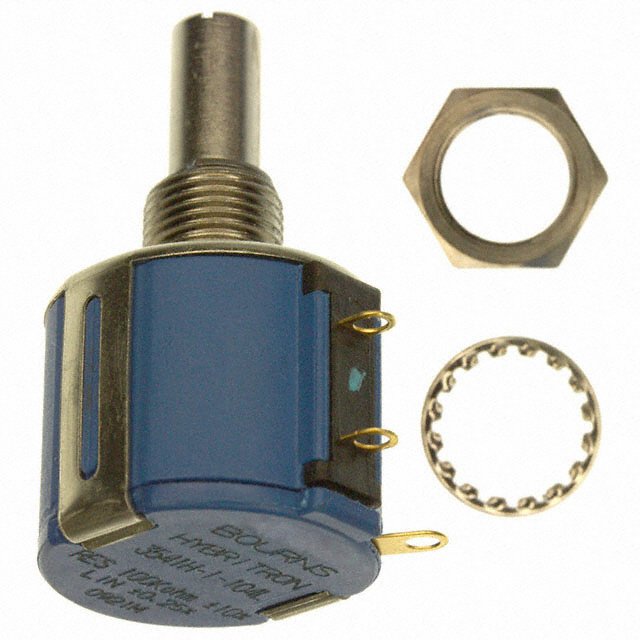

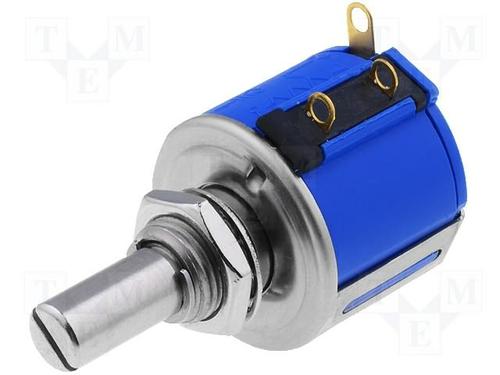

精密电位器 Precision Potentiometer
100k 欧姆 1 组 线性 面板安装 电位计 无 10 匝 Hybritron® 2W 焊片
安富利:
Res Hybritron POT 100K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
TME:
Potentiometer: shaft; multiturn; 100kΩ; 2W; ±10%; 6.35mm; linear
Verical:
Res Hybritron POT 100K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
MASTER:
Res Hybritron POT 100K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
Electro Sonic:
Res Hybritron POT 100K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
容差 ±10 %
额定功率 2 W
电阻 100 kΩ
安装方式 Solder Lug, Panel

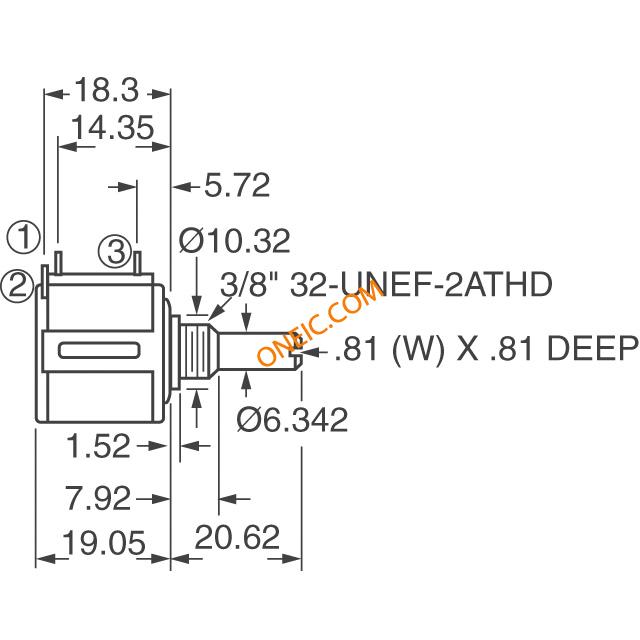

封装 Round - 0.875" Dia x 0.750" H 22.23mm x 19.05mm
长度 39.67 mm
高度 26.99 mm
封装 Round - 0.875" Dia x 0.750" H 22.23mm x 19.05mm
工作温度 -40℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533408070
