3-643815-5

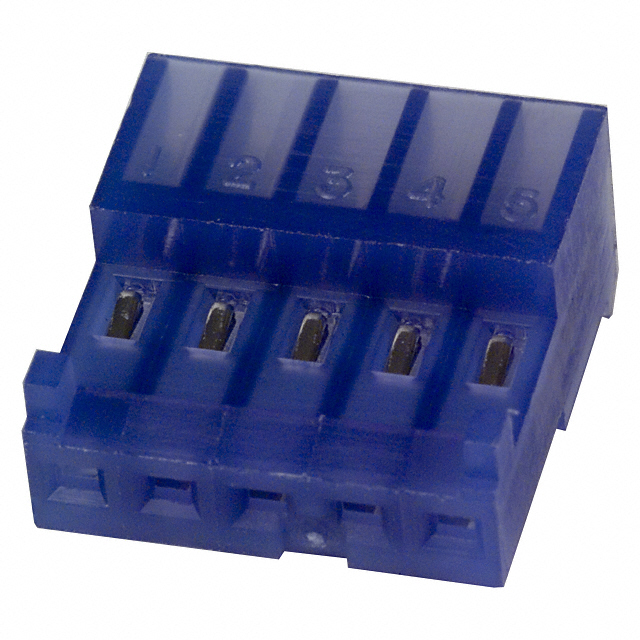

MTA-100 5 位置 2.54 mm 26 AWG 封闭端 IDC 插座

5 位置矩形连 插座 IDC 锡 26AWG

得捷:
CONN RCPT 5POS IDC 26AWG TIN

e络盟:
绝缘压穿 IDC 连接器

艾睿:
Make strong and binding connections on your circuit boards by adopting this idc connector 3-643815-5 connector from TE Connectivity. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin over nickel. It has a female type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 12.7 mm long, 6.99 mm tall and 13.21 mm deep. It uses the idt termination method. 3-643815-5 is housed in blue nylon. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
MTA-100 Connector, Receptacle, 5 Pos., Closed End, IDC, 26 AWG, Blue

安富利:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  3-643815-5  Wire-To-Board Connector, 2.54 mm, 5 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 26 AWG, STANDARD

Online Components:
05P MTA100 CONN ASSY POL RIB

Electro Sonic:
05P MTA100 CONN ASSY POL RIB
