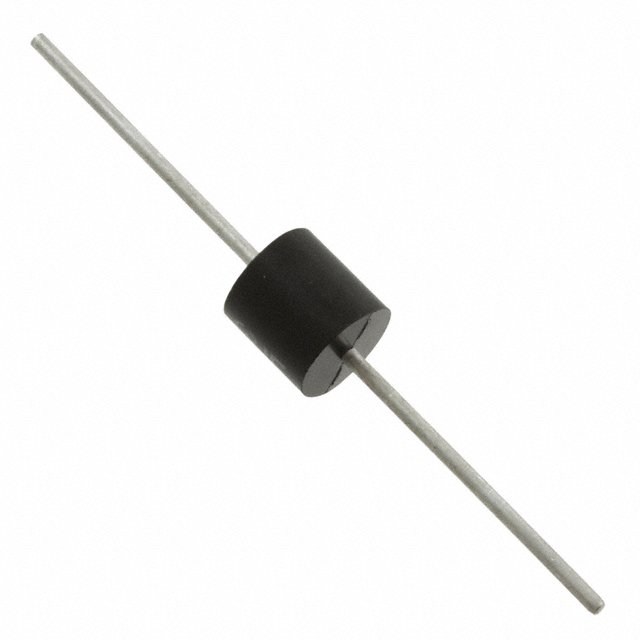

瞬态电压抑制二极管轴向引线 - 30000W Transient Voltage Suppression Diodes Axial Leaded - 30000W
Description
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
得捷:
TVS DIODE 54VWM 91.4VC P600
艾睿:
This 30KPA54A TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. Its test current is 5 mA. This device&s;s maximum clamping voltage is 91.4 V and minimum breakdown voltage is 60.3 V. Its peak pulse power dissipation is 30000 W. Its maximum leakage current is 40 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Uni-Dir 54V 30KW 2-Pin Case P-600 T/R
