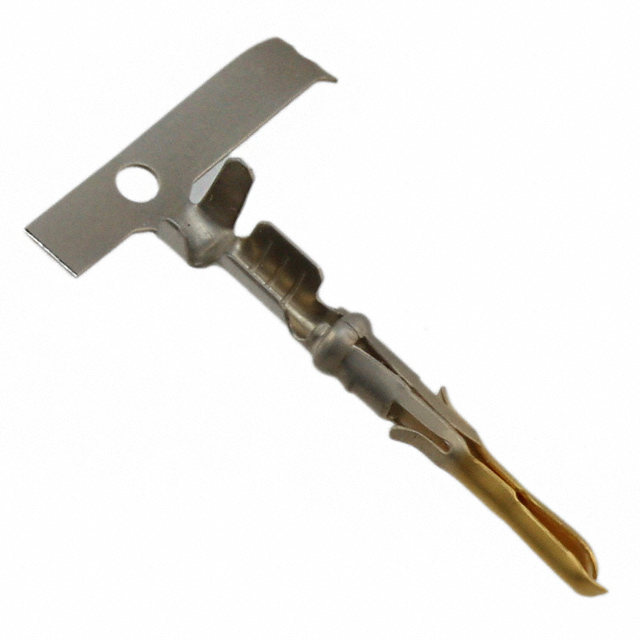

AMP FROM TE CONNECTIVITY 350967-2 压接针脚触点
\- 开叉引脚 触点 镀金 18-26 AWG 压接
得捷:
CONN PIN 18-26AWG CRIMP GOLD
立创商城:
3509672
贸泽:
集管和线壳 PIN CONTACT Reel of 6500
e络盟:
压接针脚触点
艾睿:
This 350967-2 connector contact from TE Connectivity provides a secure connection when joined with proper and appropriate connector housing. It has a straight body orientation. This device has a maximum current rating of 9 A. This has a Connector Rectangular connector. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 20.2 mm long, 3.94 mm tall and 4.45 mm deep. Its wire is 18-26 AWG. It uses the crimp termination method.
Allied Electronics:
CONTACT; PIN; SPLIT; MINI-RECTANGULAR; 26-18AWG; .165 IN; 250 V; 9A; AU 30
安富利:
Contact PIN Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact PIN Crimp ST Cable Mount Loose Piece
Verical:
Contact PIN Crimp ST Cable Mount Automotive T/R
Newark:
Contact, MR Series, Pin, Crimp, 18 AWG, Gold Plated Contacts, Miniature Rectangular Connectors
MASTER:
MR PIN
Powell:
.165" Centerline, 250 V, 9 A max.
Electro Sonic:
MR PIN AU/PHBZ
极性 Male
线规 18AWG ~ 26AWG
触点电镀 Gold
额定电流 9.00 A
额定电流Max 9 A
额定电压Max 250 VAC
安装方式 Solder
封装 -
长度 19.94 mm
宽度 3.68 mm
高度 3.94 mm
封装 -
触点材质 Phosphor Bronze
材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
350967-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
640545-2 泰科 | 功能相似 | 350967-2和640545-2的区别 |
