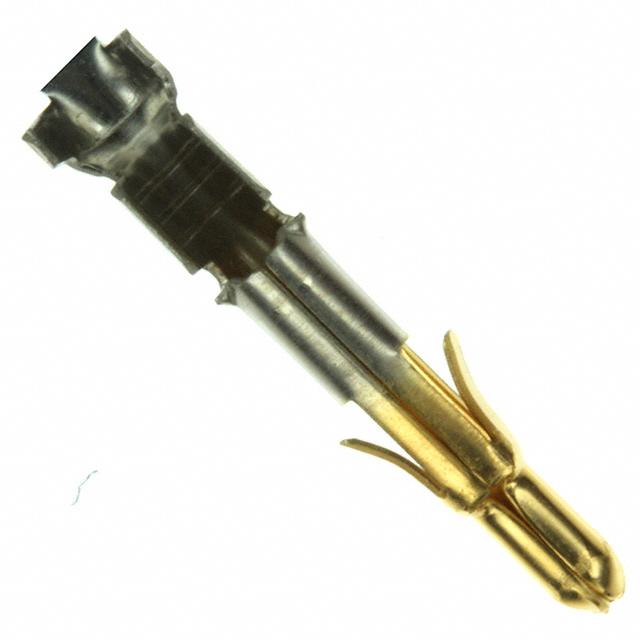

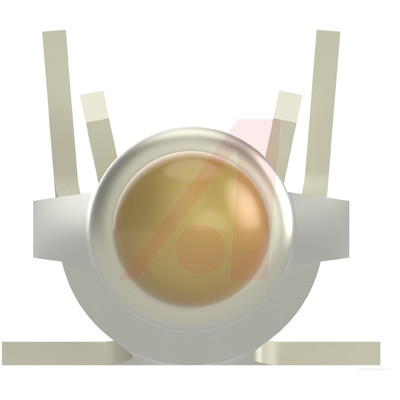

AMP - TE CONNECTIVITY 350218-6Contact, Universal MATE-N-LOK Series, Pin, Crimp, 14AWG, Gold Plated Contacts
引脚 触点 镀金 14-20 AWG 压接
立创商城:
350218-6
得捷:
CONN PIN 14-20AWG CRIMP GOLD
艾睿:
This 350218-6 connector contact from TE Connectivity is will form a perfect mechanical connection, never loose data again. It has a straight body orientation. This device has a maximum current rating of 19 A. This has a Connector Power connector. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This connector contact has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 20.32 mm long, 4.31 mm tall and 4.31 mm deep. It uses the crimp termination method. Its wire is 14-20 AWG.
Allied Electronics:
UNIVERSAL MATE-N-LOK; UMNL PIN 20-14 .0125AUPHBZ
安富利:
Contact PIN Crimp ST Cable Mount Strip
Verical:
Contact PIN Crimp ST Cable Mount 14-20AWG T/R
Newark:
# AMP - TE CONNECTIVITY 350218-6 Contact, Universal MATE-N-LOK Series, Pin, Crimp, 14 AWG, Gold Plated Contacts
MASTER:
PIN, UNIVERSAL MATE-N-LOK
Powell:
.250" Centerline, 600 V, 19 - 36 A max
Electro Sonic:
UMNL PIN 20-14 .0125AUPHBZ
触点数 1
极性 Male
线规 14AWG ~ 20AWG
触点电镀 Gold
工作电压 600 VAC
额定电流 19 A
额定电流Max 19 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
安装方式 Solder
封装 -
长度 20.1 mm
高度 4.31 mm
封装 -
触点材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
