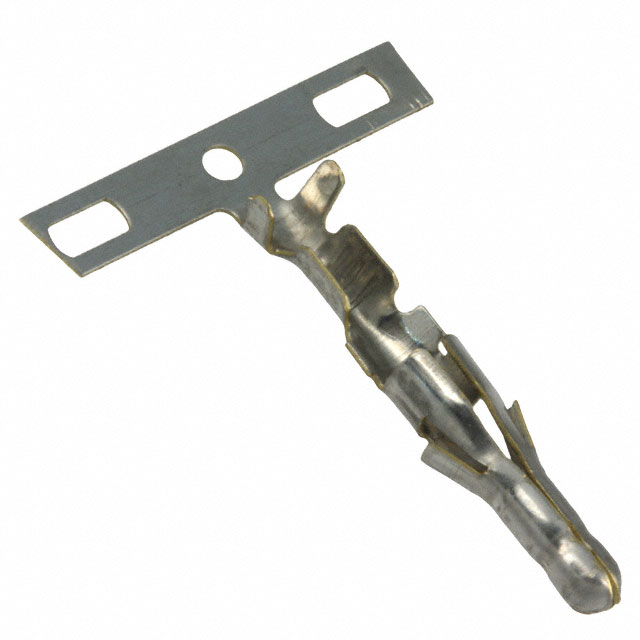

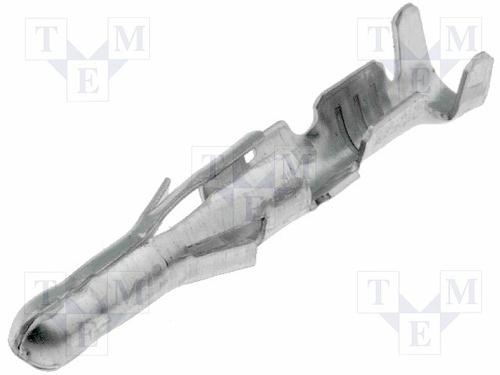

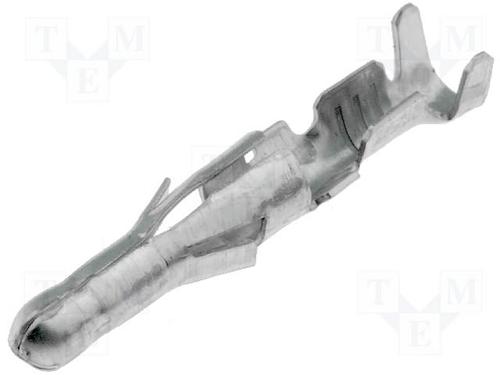

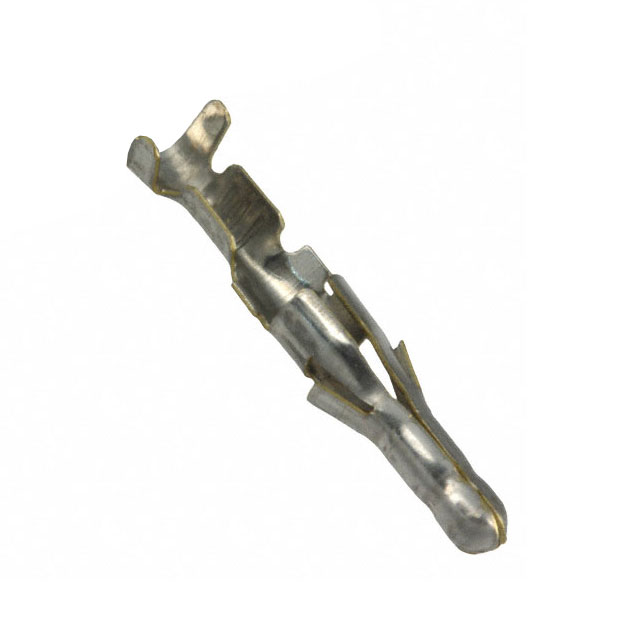

AMP FROM TE CONNECTIVITY 350418-1 金属触芯, 公, 24-18AWG, 压接
.093 COMM P&S; PIN 18-24 PTPBR
Product Highlights
Contact
Pin
Pre-Tin Solder Tail Contact Plating
Packaging Method = Strip
Wire Range = 0.20-0.80² [24-18] mm [AWG]
得捷:
CONN PIN 18-24AWG CRIMP TIN
立创商城:
350418-1
e络盟:
金属触芯, 公, 24-18AWG, 压接
艾睿:
This 350418-1 connector contact from TE Connectivity comes with a variety of features based on the application. It has a straight body orientation. This device has a maximum current rating of 13 A. This has a Connector Power connector. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the crimp termination method. This product is 25.91 mm long, 4.45 mm tall and 4.45 mm deep. This connector contact has an operating temperature range of -55 °C to 105 °C. Its wire is 18-24 AWG.
Allied Electronics:
CONTACT; PIN; SOFT SHELL 0.093; 18-24 AWG
安富利:
Contact PIN Crimp ST Cable Mount Loose Piece
TME:
Contact; male; 0.2÷0.8mm2; .093 Commercial Pin & Socket; tinned
Verical:
Contact PIN Crimp ST Cable Mount 18-24AWG Reel Automotive
Newark:
# AMP - TE CONNECTIVITY 350418-1 Contact, Commercial 0.093" Series, Pin, Crimp, 18 AWG, Tin Plated Contacts
MASTER:
.093 PIN COMMERICAL PIN AND SOCKET
Powell:
.198, .200, .250" Centerline, 250 V, 13 A max.
Online Components:
.093 COMM P&S; PIN 18-24 PTPBR
Electro Sonic:
.093 COMM P&S; PIN 18-24 PTPBR
