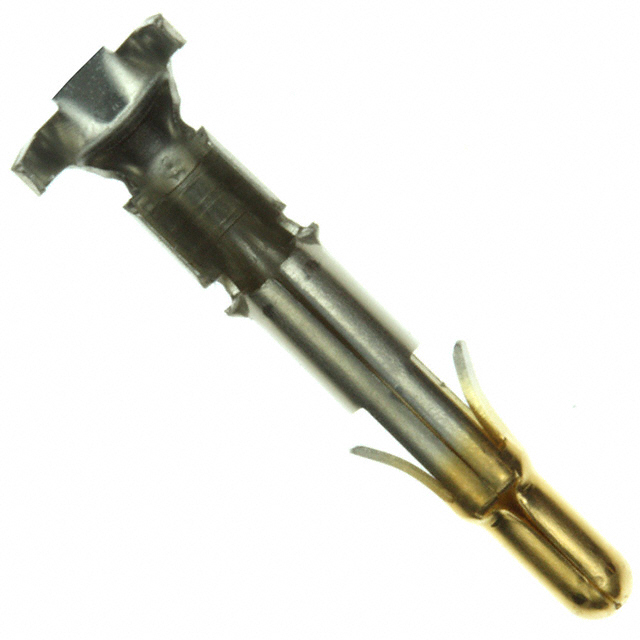

AMP FROM TE CONNECTIVITY 350538-7 触芯, Universal Mate-N-Lok系列, 公, 压接 / 焊接, 14 AWG, 镀金触芯, Universal MATE-N-LOK Connectors
Never worry about a poor connection with this connector contact from . It has a straight body orientation. This device has a maximum current rating of 13 A. This has a Connector Power connector. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 21.21 mm long, 5.83 mm tall and 4.83 mm deep. Its wire is 14-20 AWG. It uses the crimp termination method.
极性 Male
线规 14AWG ~ 20AWG
触点电镀 Gold
额定电流 19.0 A
易燃性等级 UL 94 V-0
额定电流Max 13 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压Max 250 VAC
安装方式 Solder
封装 -
长度 20.6 mm
高度 5.83 mm
封装 -
触点材质 Brass
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 照明, 电源供给, Power, 消费电子产品, 商业, HVAC, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538908040
