350585-4

管脚和插座连接器 HDR PIN 2X03C VRT V2

06P UMNL PIN HDR ASSY V2 LF

得捷:
CONN HEADER VERT 6POS 6.35MM

贸泽:
管脚和插座连接器 HDR PIN 2X03C VRT V2

艾睿:

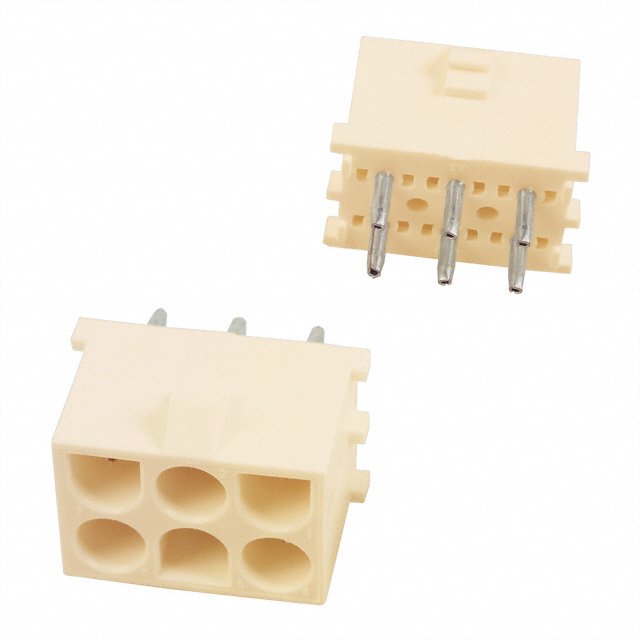

Are you looking for a solution to connecting a circuit to a power supply? Then use this 350585-4 power connector from TE Connectivity for a secure connection! This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This connector has a single port. It has a header type gender. It has a maximum voltage rating of 600 VAC. Its pitch is 6.35 mm. 350585-4 is housed in nylon. This device has a maximum current rating of 19 A/contact. This product is 14.73 mm tall. Its 6 terminals use the solder termination method.

安富利:
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port

Verical:
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Bag

MASTER:
PIN HEADER ASSEMBLY, 6 CIRCUIT, UNIVERSAL MATE-N-LOKTM

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Electro Sonic:
06P UMNL PIN HDR ASSY V2 LF
