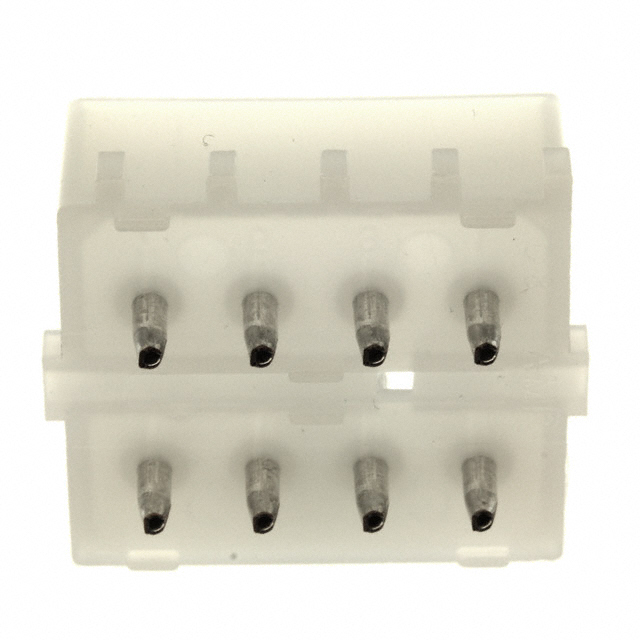

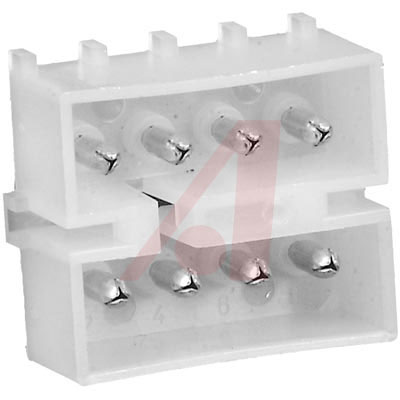

350212-1

AMP FROM TE CONNECTIVITY  350212-1  针座, PCB, 8路

Soft Shell Connector, Product Type Interface Seal

PC board pin headers mate with free hanging socket connectors. 0.070" holes on 0.200" centers.

Tin-Plated Contacts

得捷:
CONN HEADER VERT 8POS 5.08MM

贸泽:
管脚和插座连接器 CONN PCM 8 POS TIN

e络盟:
矩形连接器, Commercial MATE-N-LOK系列, 8 触点, 插头, 4.95 mm, 焊接, 2排

艾睿:
This specially engineered 350212-1 power connector from TE Connectivity is designed for various high voltage and current supplies. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with pre-tin. It has a straight body orientation. Its pitch is 4.95 mm. It has a header type gender. It has a maximum voltage rating of 250 VAC. This connector has a single port. 350212-1 is housed in nylon. This device has a maximum current rating of 13 A/contact. This product is 22.86 mm long, 10.29 mm tall and 19.93 mm deep. Its 8 terminals use the solder termination method.

Allied Electronics:
Header; Conn; Interconnect System; PCB Plug; 8 Cont; Thru-Hole; MATE-N-LOK Series

Jameco:
PCB HEADER,VERT,2 ROW,P-LOCK

安富利:
Conn Power HDR 8 POS 4.95mm Solder ST Thru-Hole 8 Terminal 1 Port

Chip1Stop:
Conn Power HDR 8 POS 4.95mm Solder ST Thru-Hole 8 Terminal 1 Port

Verical:
Conn Power HDR 8 POS 4.95mm Solder ST Thru-Hole 8 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  350212-1  Rectangular Connector, Commercial MATE-N-LOK Series, 8 Contacts, Header, 4.95 mm, Through Hole

MASTER:
Rectangular Connector - Commercial MATE-N-LOK Series - 8 Contacts - Plug - 4.95 mm - Solder - 2 Row.

Powell:
.200" Centerline, 250 V, 13 A max.

Online Components:
8 CIRCUIT MATE N LOK PC BOARD HEADER

Electro Sonic:
Rectangular Connector - Commercial MATE-N-LOK Series - 8 Contacts - Plug - 4.95 mm - Solder - 2 Row.
