3-641209-4

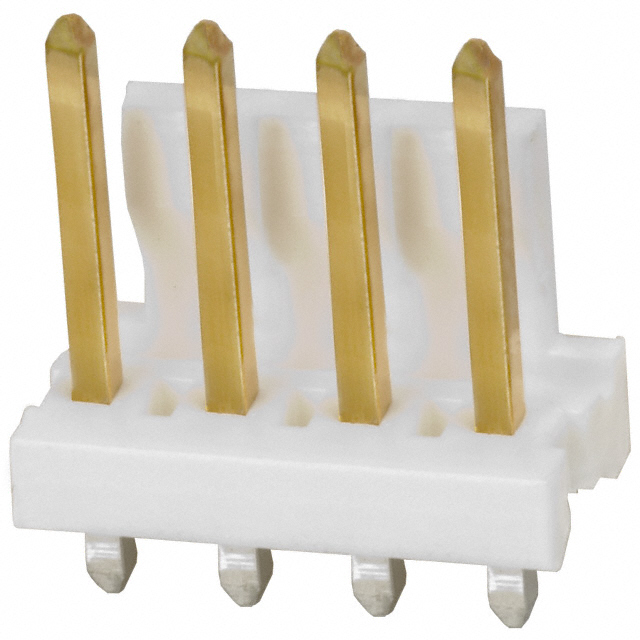

4Position Single Row 3.96mm Through Hole Male Pin Header

04P MTA156 HDR ASSY FL ST LF

Product Highlights

MTA-156 Connectors

Number of Positions = 4

Mating Type = Header

Wire-to-Board Application

3.96 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 4POS 3.96MM

贸泽:
Headers & Wire Housings HDR 4 POS VERT GOLD

艾睿:
Mount this wire to board 3-641209-4 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.96 mm. It has a header type gender. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 7 A/contact. 3-641209-4 is housed in white polyester. This product is 15.85 mm long, 13.34 mm tall and 7.67 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

Chip1Stop:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Package

Verical:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Top Entry Thru-Hole Package

MASTER:
MTA-.156 HEADER ASSEMBLY, FRICTION LOCK, STRAIGHT, .045 ROUND POST, .000030 GOLD

Online Components:
04P MTA156 HDR ASSY FL ST LF

Electro Sonic:
04P MTA156 HDR ASSY FL ST LF
