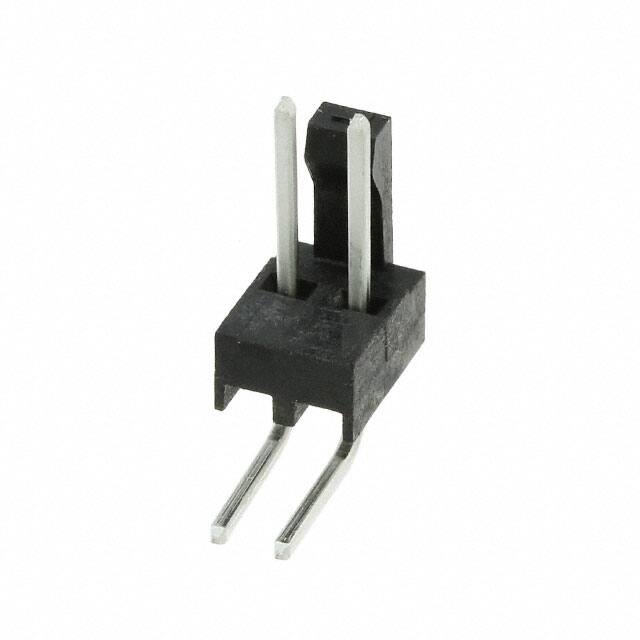

2 位置 2.54 mm 直角 线对板 针座
MTA-100 2 Postion Through Hole Right Angle Wire to Board Pin Header
得捷:
CONN HEADER 2POS R/A TIN .100
立创商城:
3-647630-2
艾睿:
Easily mount this wire to board 3-647630-2 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with tin. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 3-647630-2 is housed in black thermoplastic. It uses the solder termination method. This product is 5.08 mm long, 13.71 mm tall and 6.35 mm deep.
安富利:
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole
Chip1Stop:
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Bag
Electro Sonic:
02P MTA100 HRD ASSY F/L LF
触点数 2
触点电镀 Tin
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
封装 ThroughHole
高度 13.71 mm
封装 ThroughHole
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
