350789-3

TE Connectivity Universal MATE-N-LOK / Universal MATE-N-LOK II Vertical PCB Mount HeadersA range of Universal MATE-N-LOK vertical PCB mount headers that can be used with both Universal MATE-N-LOK and Universal MATE-N-LOK II plug housings.### TE Connectivity 通用 MATE-N-LOK II ™ 系列

通用 MATE-N-LOK / 通用 MATE-N-LOK II 垂直印刷电路板安装管座

一系列通用 MATE-N-LOK 垂直印刷电路板安装管座，适合与通用 MATE-N-LOK 和通用 MATE-N-LOK II 插头外壳一起使用。

欧时:
TE Connectivity 通用 MATE-N-LOK / 通用 MATE-N-LOK II 垂直印刷电路板安装管座一系列通用 MATE-N-LOK 垂直印刷电路板安装管座，适合与通用 MATE-N-LOK 和通用 MATE-N-LOK II 插头外壳一起使用。### TE Connectivity 通用 MATE-N-LOK II ™ 系列

得捷:
CONN HEADER VERT 3POS 6.35MM

立创商城:
6.35mm 1x3P

贸泽:
Pin & Socket Connectors HDR PIN 1X03C VRT V0

艾睿:

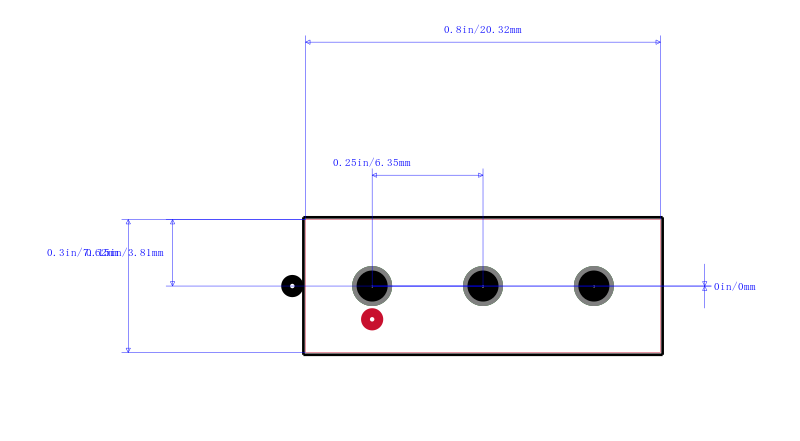

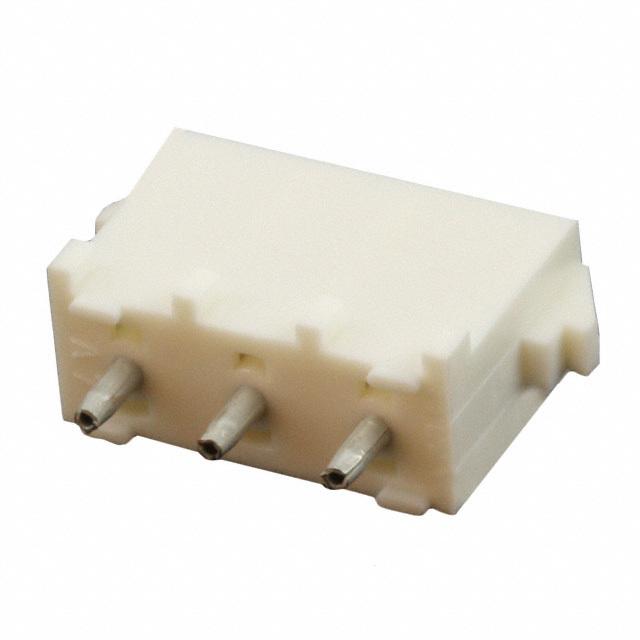

This robust 350789-3 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This connector has a single port. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. Its pitch is 6.35 mm. 350789-3 is housed in nylon. This device has a maximum current rating of 19 A/contact. This power connector has a minimum operating temperature of -65 °C and a maximum of 105 °C. This product is 20.32 mm long, 13.97 mm tall and 7.62 mm deep. Its 3 terminals use the solder termination method.

Allied Electronics:
Conn; Header; Plug; 3 Pos; Univ MATE-N-LOK; Vertical; White; Gold

Jameco:
3 Position Universal MATE-N-LOK PIN Header Assembly 94VO

安富利:
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port

Chip1Stop:
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Bag

Verical:
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  350789-3  Rectangular Connector, Universal MATE-N-LOK Series, 3 Contacts, Header, 6.35 mm, Through Hole

MASTER:
PIN HEADER ASSEMBLY, 3 CIRCUIT, UNIVERSAL MATE-N-LOKTM

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Online Components:
03P UMNL PIN HDR ASSY 94VO

Electro Sonic:
03P UMNL PIN HDR ASSY 94VO
