3209934概述

Pre-Assembled COMBI plug connectors with Push-In ConnectionThe COMBI plug connectors with PT Push-In technology with 24 A / 500 V can be used for signal as well as power wiring.,The plug connector PP-H 2,5/... facilitates the use of the cable housings PH 2,5/2 to PH 2,5/15.Toolless wiring of solid conductors and conductors with ferrule 50 % less insertion force for direct plugging from 0.34 mm With the standardized plug-in zone, they can also be connected to COMBI basic terminal blocks with other connection methods Easy and individual coding options on every plug connector increase wiring safety and serve the protection against improper insertion Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm Actuation button can be operated with any kind of screwdriver ### 推入式连接端子块PT 系列特性包括轻松直接的导线连接，并始终采用 CLIPLINE 完整系统的优点。 PT 推入式连接方法高达 50% 更低的插入力，还可使用 0.34mm2 及以上套圈轻松直接插接实心和绞合线。

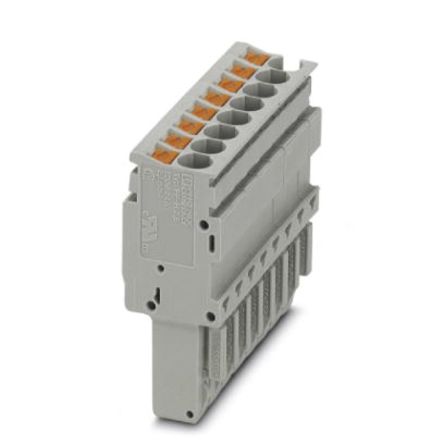

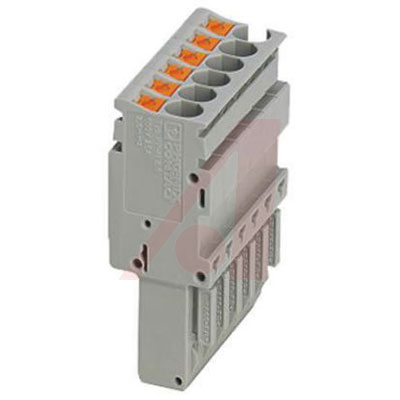

8 针位端子块插头，母插口 - - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 8POS STR

欧时:
3209934 - Phoenix Contact 菲尼克斯 PP-H Clipline 系列灰色 Combi 插头

艾睿:
Perfect for troubleshooting this 3209934 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. This F connector has 8 F contacts. It has a maximum voltage rating of 500 V. It has a female type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 24 A. 3209934 is housed in polyamide. This product is 15.8 mm long, 39 mm tall and 41.6 mm deep. Its wire is 12-26 AWG.

Allied Electronics:
Combi Plug, PP-H Series, 0.14 to 4mmsq, 500V, 24A, Push In Term, Grey, Single Level

Verical:
Conn Terminal Block F 8 POS ST Cable Mount 24A

MASTER:
Plug - nom. voltage: 500 V - nominal current: 24 A - connection method: Push-in connection - number of connections: 8 - number of positions: 8 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 41.6 mm - height: 40.2 mm - color: gray - mounting ty

Electro Sonic:
Plug - nom. voltage: 500 V - nominal current: 24 A - connection method: Push-in connection - number of connections: ...

3209934中文资料参数规格

技术参数

触点数 8

线规 12AWG ~ 26AWG

额定电流 24 A

排数 1

电路数 8

针脚数 8

额定电流Max 24 A

额定电压Max 500 V

额定电压 500 V

工作电压Max 500 V

外形尺寸

宽度 41.6 mm

高度 39 mm

物理参数

外壳颜色 Gray

颜色 Gray

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694030

数据手册

在线购买3209934

型号： 3209934

制造商： Phoenix 菲尼克斯

描述：Pre-Assembled COMBI plug connectors with Push-In Connection The COMBI plug connectors with PT Push-In technology with 24 A / 500 V can be used for signal as well as power wiring.,The plug connector PP-H 2,5/... facilitates the use of the cable housings PH 2,5/2 to PH 2,5/15. Toolless wiring of solid conductors and conductors with ferrule 50 % less insertion force for direct plugging from 0.34 mm With the standardized plug-in zone, they can also be connected to COMBI basic terminal blocks with other connection methods Easy and individual coding options on every plug connector increase wiring safety and serve the protection against improper insertion Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm Actuation button can be operated with any kind of screwdriver ### 推入式连接端子块 PT 系列特性包括轻松直接的导线连接，并始终采用 CLIPLINE 完整系统的优点。 PT 推入式连接方法高达 50% 更低的插入力，还可使用 0.34mm2 及以上套圈轻松直接插接实心和绞合线。
