Schurter UMF 250 SeriesSchurter UMF 250 series surface mount high breaking capacity fuses are quick acting and compact. The UMF 250 fuse series is suitable for a wide range of applications, including industrial and domestic electronics, medical equipment and power supplies.Directly solderable on printed circuit boards Low melting l2t values Fast interruption Compact design ### 表面安装技术_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

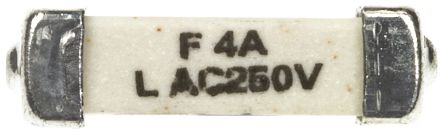

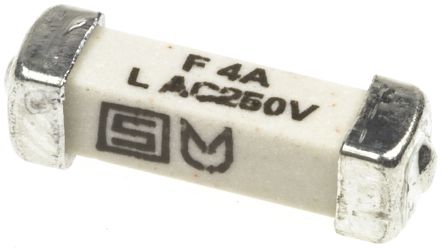

UMF 250 Series
Schurter UMF 250 series surface mount high breaking capacity fuses are quick acting and compact. The UMF 250 fuse series is suitable for a wide range of applications, including industrial and domestic electronics, medical equipment and power supplies.
Directly solderable on printed circuit boards
Low melting l2t values
Fast interruption
Compact design
### 表面安装技术
表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等
额定电压DC 125 V
额定电压AC 250 V
额定电流 4 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 2 W
额定电压 250 V
额定电压DC Max 125 V
额定电压AC Max 250 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 10.1 mm
宽度 3 mm
高度 3 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
