35J1R5

35J1R5图片1
35J1R5图片2
35J1R5图片3
35J1R5图片4
35J1R5图片5
35J1R5图片6

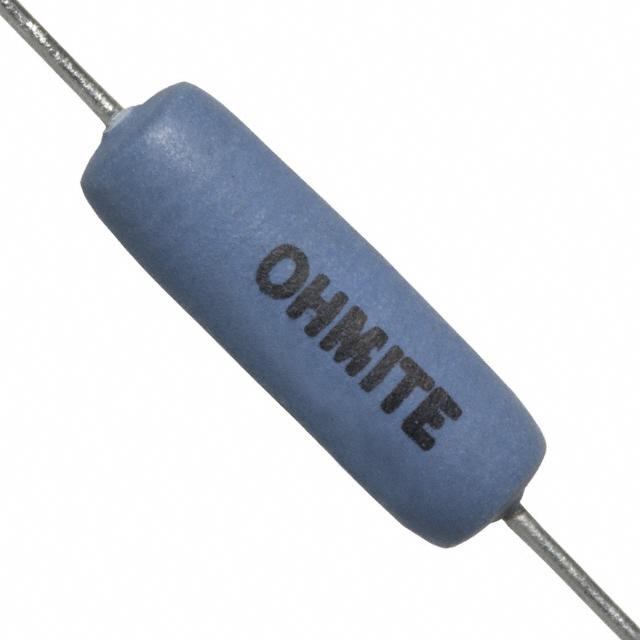

35J1R5图片7
35J1R5图片8
35J1R5概述

绕线电阻 1.5Ω ±5% 5W

1.5 Ohms ±5% 5W 轴向 通孔器 - 绕线


得捷:
RES 1.5 OHM 5% 5W AXIAL


立创商城:
绕线电阻 1.5Ω ±5% 5W


艾睿:
Res Wirewound 1.5 Ohm 5% 5W Conformal Coated AXL


Allied Electronics:
5W SILICONE 5% HIGH EN 1.5 OHM


Chip1Stop:
Res Wirewound 1.5 Ohm 5% 5W Conformal AXL


Verical:
Res Wirewound 1.5 Ohm 5% 5W AXL


MASTER:
Res Wirewound 1.5 Ohm 5% 5W Conformal Coated AXL


Online Components:
Res Wirewound 1.5 Ohm 5% 5W Conformal Coated AXL


Electro Sonic:
Res Wirewound 1.5 Ohm 5% 5W Conformal Coated AXL


35J1R5中文资料参数规格
技术参数

额定电压DC 460 V

容差 ±5 %

额定功率 5 W

产品系列 30

电阻 1.5 Ω

阻值偏差 ±5 %

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 23.8 mm

直径 8.70 mm

脚长度 38.1 mm

封装 Axial

其他

产品生命周期 Active

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

35J1R5引脚图与封装图
35J1R5引脚图
35J1R5封装图
35J1R5封装焊盘图
在线购买35J1R5
型号: 35J1R5
制造商: Ohmite
描述:绕线电阻 1.5Ω ±5% 5W
