Vishay 357 系列Vishay 357 系列为高度可靠的衬套安装电位计。 357 系列设计用于广泛的工业应用。极好的温度稳定性 长旋转寿命 高品质 结构小型 ### 导电塑料

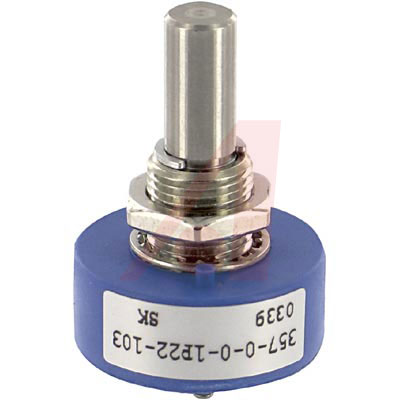

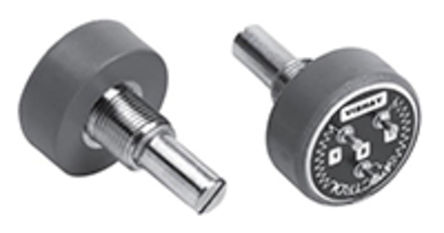

Conductive Plastic Potentiometer, 22 mm Length, ± 20% Tolerance
7/8" round single-turn Conductive Plastic. 20% resistance tolerance. 1.0 watt at 70°C. 340° ±3° electrical travel.
** Features**
* Compact, Single-Turn Conductive Plastic Position Sensors Offer Versatility in a Variety of Applications
* Plastic Housing
* Brass, Nickel-Plated Bushing
* Solder-Plated, Turret-Style Terminals
* 1/4" Stainless Steel Non-Magnetic Shaft
** Specifications**
* Power Rating @ 70°C: 1 Watt
* Dielectric Strength: 1000 V RMS
* Temperature Coefficient: ±600 ppm/°C
* Output Smoothness: 0.1% Max.
* Linearity: ±2%
* Mechanical Rotation: 360° Continuous
* Electrical Rotation: 340° ±3°
* Mechanical Life: 10,000,000 Cycles
* Operating Temperature: -55°C to +125°
