3120-F Thermal Circuit Breaker Rocker SwitchCombination circuit breaker / On-Off switch with rocker actuation Snap-in panel front mounting Trip-free, snap action mechanism Two-pole, Single-pole, thermally protected port 11, 12k, 12i On-off switch without current protection button Meets the CBE standard EN 60934 IEC 60934 Meets the requirements of fire resistance according to EN 60335-1 Typical applications in electric motors, household appliances and office machines, electric tools, power supplies, rectifiers, medical devices according to EN 60601 Mounting hole 44.5 x 22 mm clamping thickness 1-4 mm ### 认可UL; CSA; VDE EN 60934; CCC.### 设备安装

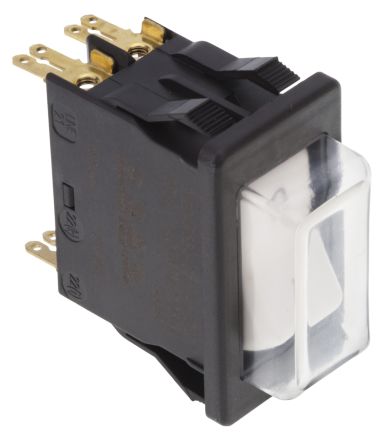

3120-F Thermal Circuit Breaker Rocker Switch
Combination circuit breaker / On-Off switch with rocker actuation
Snap-in panel front mounting
Trip-free, snap action mechanism
Two-pole, Single-pole, thermally protected port 11, 12k, 12i
On-off switch without current protection button
Meets the CBE standard EN 60934 IEC 60934
Meets the requirements of fire resistance according to EN 60335-1
Typical applications in electric motors, household appliances and office machines, electric tools, power supplies, rectifiers, medical devices according to EN 60601
Mounting hole 44.5 x 22 mm clamping thickness 1-4 mm
### 认可
UL; CSA; VDE EN 60934; CCC.
### 认可
UL; CSA; VDE EN 60934; CCC
