22 mm 按钮头，金属（光泽）Siemens 极其坚固的 IP69K 按钮头，高级塑料执行元件，带光泽金属前环。 提供各种颜色，照明、非照明或蘑菇形样式。安装时，具有执行器自保持功能 扭转抑制功能集成到专利固定器设计中 适用于极端恶劣环境中 不需要特殊工具 简单的几何形状，用于安装孔 ### 标准IEC 60947-1，EN 60947-1 IEC 60947-5-1，EN 60947-5-1### Siemens Sirius Act 系列SIRIUS ACT 系列按钮和信号设备具有专门设计的多种按纽、指示灯和开关，智能、可靠且非常坚固。创新的扣入式概念让安装任务变得十分轻松，单手便可完成。 由纯金属和高级塑料制成，安装有智能功能和交互功能，这些最先进的按钮、指示灯和开关经在各种因素下的测试，可确保长使用寿命和各种操作下的可靠性。单手安装，无需特殊工具 组件可扣合，无需按住另一侧 可在倾斜位置安装 模块化概念 时尚的设计和优质材料 极其坚固且可靠 灵活通信 - AS-I、IO Link 和 Profinet

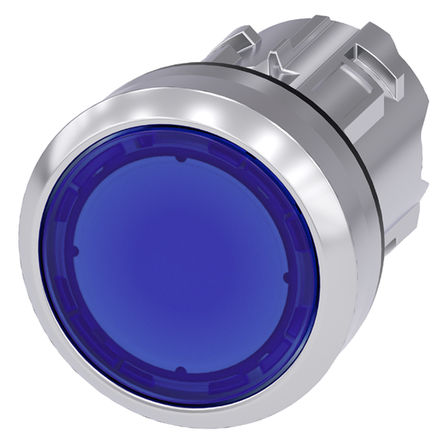

The from Siemens is a 22mm, round, blue colour metal SIRIUS ACT illuminated pushbutton switch actuator with flat button. Illuminated pushbutton is used to actuate contact module and can also function as display device by means of an LED module. A variant with a fixed pushbutton can be used as an indicator light. The button can be replaced from front by the user.
- .
- Momentary contact
- .
- Outer diameter of the actuating element is 29.5mm
- .
- Mechanical service life switching cycles is typical 3000000
- .
- IP66, IP67, IP69 IP69K protection class
- .
- Silver colour standard front ring
- .
- Metal, high gloss material of the front ring
- .
- Ambient temperature during operation -25°C to +70°C
- .
- Dimension of 29.5mm x 29.5mm H x W
