22 mm 指示灯完整装置，金属（光泽表面）Siemens 极其坚固的 IP69K 完整金属指示灯，带集成 LED 和支座，提供各种颜色。 安装简便 适用于极端恶劣环境中 不需要特殊工具 简单的几何形状，用于安装孔 连接到最常用通信系统（PROFINET，AS-Interface，IO-Link） ### 认可IEC 60947-1，EN 60947-1 IEC 60947-5-1，EN 60947-5-1### Siemens Sirius Act 系列SIRIUS ACT 系列按钮和信号设备具有专门设计的多种按纽、指示灯和开关，智能、可靠且非常坚固。创新的扣入式概念让安装任务变得十分轻松，单手便可完成。 由纯金属和高级塑料制成，安装有智能功能和交互功能，这些最先进的按钮、指示灯和开关经在各种因素下的测试，可确保长使用寿命和各种操作下的可靠性。单手安装，无需特殊工具 组件可扣合，无需按住另一侧 可在倾斜位置安装 模块化概念 时尚的设计和优质材料 极其坚固且可靠 灵活通信 - AS-I、IO Link 和 Profinet

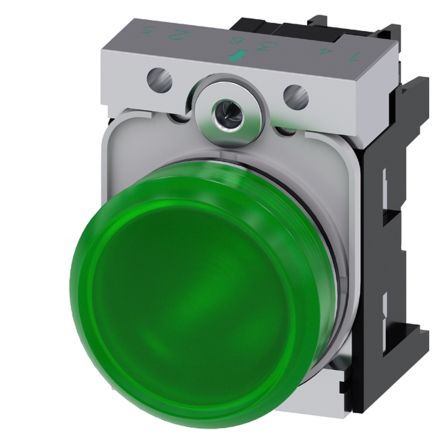

The from Siemens is a SIRIUS ACT 22mm, green colour single LED indicator module with holder. This is round shaped smooth lens made of shiny metal material. It features shock resistance, vibration resistance, 3 degree of pollution, NEMA 1, 2, 3, 3R, 4, 4X, 12 degree of protection and IP66, IP67, IP69 IP69K protection class, IP20 terminal protection class.
- .
- Insulation voltage is 320V
- .
- Surge voltage resistance rated value is 4KV
- .
- Rated operating voltage is 230V with 20% relative positive, negative tolerance of operating voltage
- .
- Screw type electrical connection
- .
- Front panel mounting
- .
- Light intensity range from 900mcd to 1800mcd
- .
- Ambient operating temperature range from -25°C to +70°C
- .
- Outer diameter of actuating element is 29.45mm, 22.3mm mounting diameter & 11.8mm mounting height
- .
- 40mm height, 30mm width, 49.7mm installation depth and 29.5mm installation width
- .
- CCC, CSA, UL, EAC, CE standards approved
