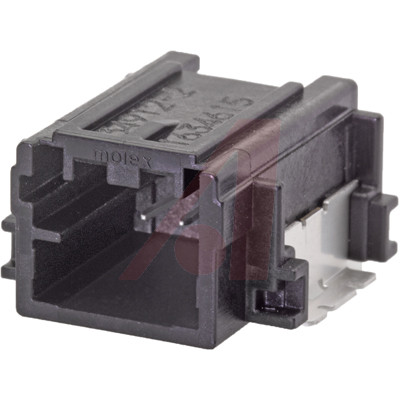

MOLEX 34912-8020. CONNECTOR, HEADER, 2POS, 1ROW, 2MM 新
Delivering 50% space savings over traditional USCAR 0.64 mm connectors with smaller terminals to fit more signals into vehicle interiors, the Mini50™ Unsealed Connector System is approved as the industry"s only USCAR 050 interface.
**Features:
* **Addition of 2 circuit-size SMT headers and receptacles delivers the only two-circuit connector with a 0.50mm terminal interface in the industry. Tested to full USCAR specifications. Enhances design flexibility
**
* **Designed and tested to USCAR 050 specifications approved as the industry’s only USCAR 050 approved interface from 4 to 24 circuits. Larger circuit versions also comply with USCAR specifications
**
* **50% smaller than USCAR 0.64mm unsealed interfaces minimizes PCB footprint for design flexibility and space saving
**
* **Independent secondary lock ISL terminal-retention feature secures terminal inside the housing; one piece design for applied cost savings
**
* **Orientation features molded into the header provides wire-routing and module-design flexibility for both vertical and right-angle connectors. Retains the header to the PCB during the soldering process
**
* B
**oard alignment and retention features simplifies header placement on the PCB and retains the header to the PCB during soldering operations. Protects adhesive joints during connector mating and unmating
**
* **High-temperature thermoplastic housings withstands infrared IR and wave lead-free solder processing per ES-40000-5013 specification, up to a maximum temperature of +260 °C
**
* **Female terminal wire grips for wires 0.35mm 2 and smaller reduces wire size, and provides weight, space, and cost savings versus 0.64mm interfaces
