30.357

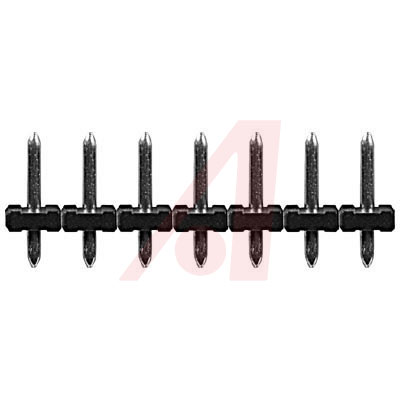

Conn Unshrouded Header HDR 7POS 5mm Solder ST Thru-Hole

Polyamide 6.6 Strip , 0.197 in. Pin Spacing, Gray , Straight Pin Header

Cost effective plug and header design for light duty applications where infrequent multiple wire-to-board connections will be made. UL, CSA, IEC/VDE. Please contact for pole positions not shown.Straight open pin headers feature break-away construction and are supplied in lengths up to 24 poles.

** STL130 Pin Header.** 5 mm 0.197" pin spacing. 10 A, 300 V.Open pin type. Can be supplied in strips up to 24 poles. 1.3 mm 0.05" dia. round pins. Mate with AK130, AK132 plugs.

* 10 A, 300 V, 22-14 AWG

* Standard Color: Gray
