2.54毫米（ .100“ ） H- DAC 64 ™ 2.54mm .100" H-DAC 64™

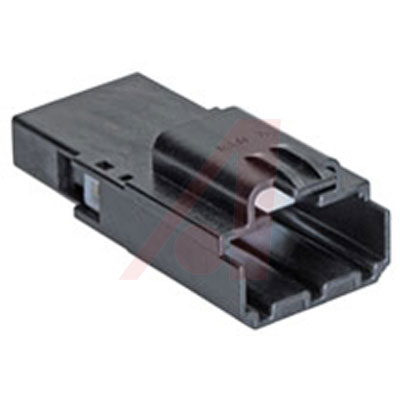

H-DAC 64™ Unsealed Connector System
The H-DAC 64™ single- and dual-row connector system provides space saving, flexible options for unsealed applications. The H-DAC 64™ connector system provides single- and dual-row options, is designed to offer space-saving alternatives and meets all unsealed USCAR-2 class 2 requirements. A positive lock ensures proper mating and a TPA feature increases terminal retention.
The single-row connector system consists of vertical and right-angle, 4-circuit headers, male and female in-line connectors and is available in 3- to 6-circuit configurations. Each terminal is capable of supporting both low-signal and low-power applications up to 10.0A.
The dual-row connector system offers 6- to 20-circuit configurations, as well as a 24-way hybrid connector. Each terminal is capable of supporting both low-signal and low-power applications up to 7.0A.
