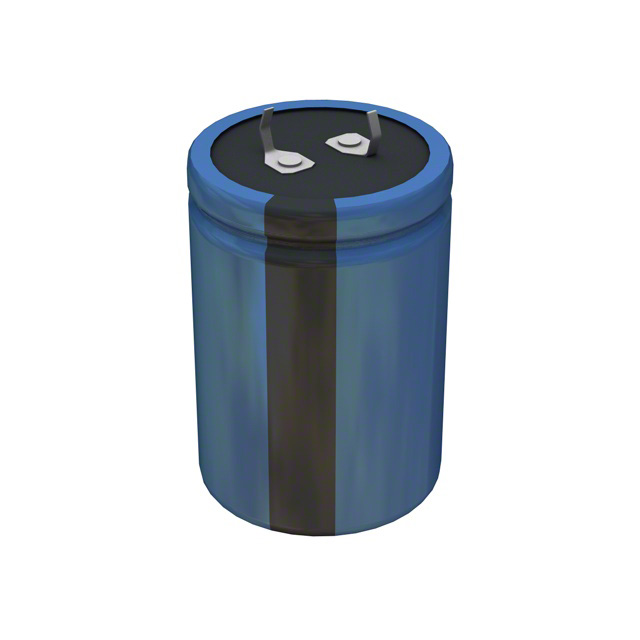

380LX271M500A052

270uF 500V Φ35mm 50mm

High-Capacitance Snap-In Capacitors, Type 380LX, ± 20% Tolerance, -25 to 85°C

The excellent value of Type 380L/LX capacitors finds application in switching power supply input and output circuits and even motor drives where the high surface area of multiple units in parallel approaches the ripple capability of our Type 520C computer-grade capacitor. Type 380LX delivers more capacitance per can size while Type 380L gives lower ESR for the same capacitance rating.

* Top Performance in Power Supplies and Motor Drives

* Operating Temperature: -40°C to 85°C Up to 300 V, -25°C to 85°C ≥315 V

* Capacitance: 33 μF to 560 μF ±20%

* Leakage Current: ≤3 √CV μA at 5 Min.

* EIA Ripple Life: 3,000 H @ Full Load at +85°C Per EIA IS-749 Capacitance ±20%

* Shelf Life: 1000 H @ 85°C
