30.308

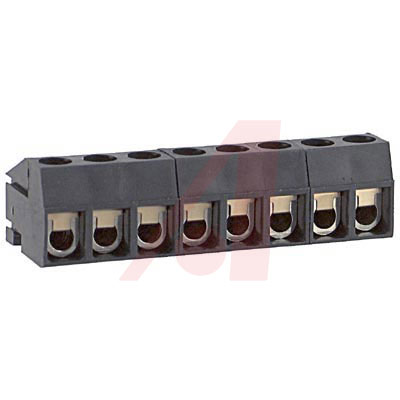

Conn Terminal Block F 8POS 5mm Screw ST Cable Mount 15A

300 V , 22-14 AWG , Polyamide 6.6 Housing , Modular Plug

Cost effective plug and header design for light duty applications where infrequent multiple wire-to-board connections will be made. UL, CSA, IEC/VDE. Please contact for pole positions not shown.Straight open pin headers feature break-away construction and are supplied in lengths up to 24 poles.

** AK130 Plug.** 5 mm 0.197" pin spacing. 10 A, 300 V, 22-14 AWG.

Wire entry perpendicular to plug in direction, modular construction, interlock 2 and 3 pole modules to create multipole assemblies. 10.8 mm 0.43" high.

.

* Color:** Gray. Mate with STL130, STL132 straight pin headers right angle headers are available.

* 10 A, 300 V, 22-14 AWG

* Standard Color: Gray
