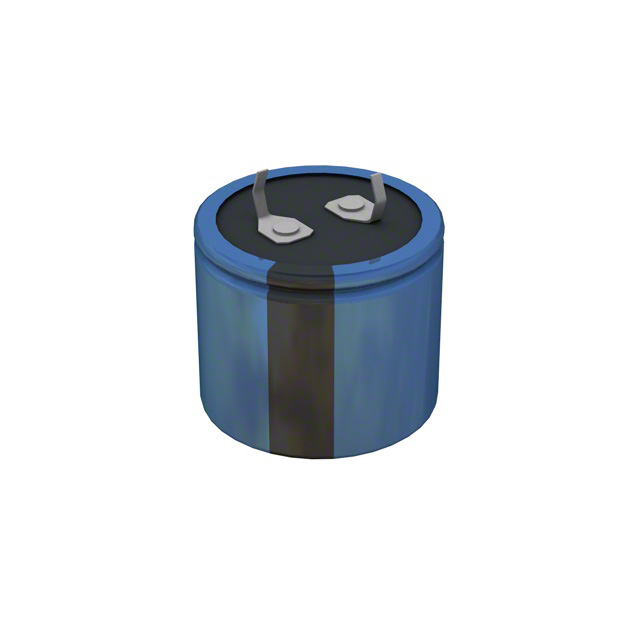

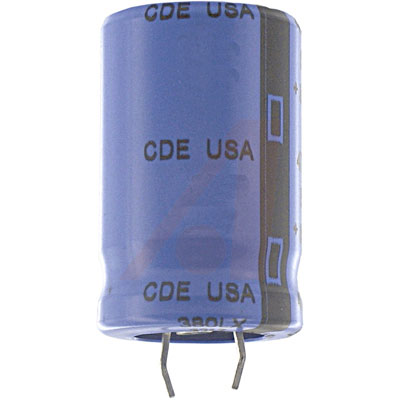

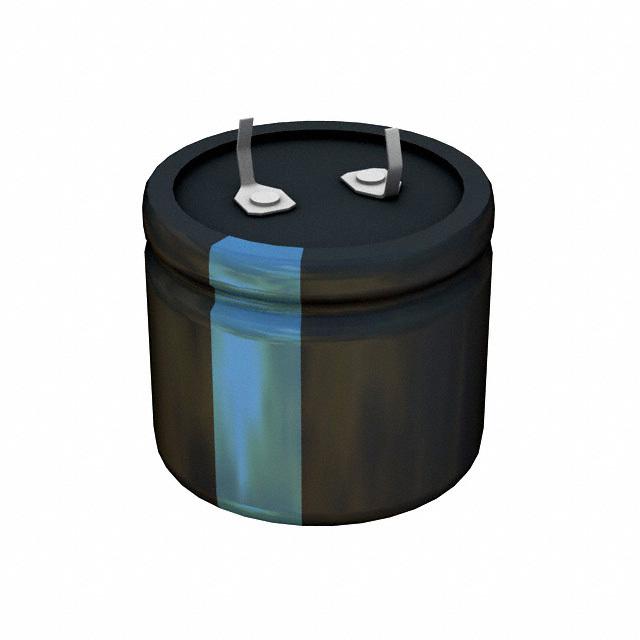

380LX820M500K012

82uF 500V Φ30mm 25mm

**Overview

**The excellent value of Type 380L/LX capacitors finds application in switching power supply input and output circuits and even motor drives where the high surface area of multiple units in parallel approaches the ripple capability of our Type 520C computer-grade capacitor. Type 380LX delivers more capacitance per can size while Type 380L gives lower ESR for the same capacitance rating.

**Features

**

* Capacitance Range: 33 to 270,000 μF ±20%

* Voltage Range: 16 to 500 VDC

* Top Performance in Power Supplies and Motor Drives

* Operating Temperature: –40°C to 85°C Up to 300 V, –25°C to 85°C ≥315 V

* Leakage Current: ≤3 √CV μA at 5 Min.

* EIA Ripple Life: 3,000 H @ Full Load at +85°C Per EIA IS-749 Δ Capacitance ±20%

* Shelf Life: 1000 H @ 85°C
