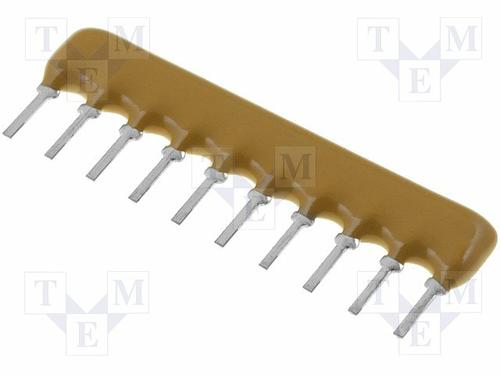

4610X-101-103LF

BOURNS  4610X-101-103LF  电阻网络, 10K

9 总线器

70°C 时功率 | 0.2W（单个），1.25W（总体）

---|---

最大工作电压 | 100V 直流

尺寸（长 x 宽 x 高） | 25.35 mm x 2.49 mm x 5.08 mm

引线间距 | 2.54mm

电阻容差 | ±2%

温度系数 | ±100ppm/°C

温度系数记录 | ±50ppm/°C

工作温度 | -55°C → +125°C

得捷:
RES ARRAY 9 RES 10K OHM 10SIP

欧时:
Bourns 4600X 系列 1.25W 10kΩ 9个电阻 排阻 4610X-101-103LF, 10端子, ±2%容差, 总线电路标识, SIP 封装

立创商城:
10kΩ ±2%

e络盟:
固定阵列电阻, 10 kohm, 4610X系列, 9 元件, 总线, SIP, 10 引脚

艾睿:
Bourns 4610X-101-103LF nine resistor 10 KΩ network with 2% tolerance, 1.25 W rating, and an operating temperature range of -55°C to +125°C.

Allied Electronics:
Resistor, Ntwrk; 10 K Ohms; Bussed; Epoxy Resin; Conformal SIP; 1.25W; 2%; 100V; 10Pin

安富利:
Res Thick Film NET 10K Ohm 2% 1.25W ±100ppm/°C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 10K Ohm 2% 1.25W ±100ppm/℃ BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: X; 10kΩ; No.of resistors:9; THT; 0.2W; ±2%; 100V

Verical:
Res Thick Film NET 10K Ohm 2% 1.25W ±100ppm/C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4610X-101-103LF  Fixed Network Resistor, Isolated, 10 kohm, 100 V, 9 Elements, Bussed, SIP, 200 mW

MASTER:
Resistor Networks - 10K Ohm - 1.25W - 25.35 x 2.49 x 5.08mm - Conformal Coated - 10-Pin - SIP package - Through Hole.

Electro Sonic:
Resistor Networks - 10K Ohm - 1.25W - 25.35 x 2.49 x 5.08mm - Conformal Coated - 10-Pin - SIP ...
