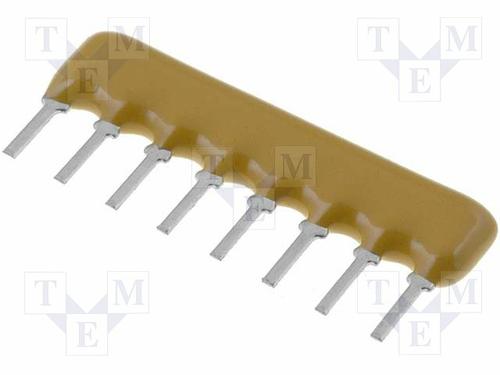

4608X-102-472LF

BOURNS  4608X-102-472LF  电阻网络, 4K7

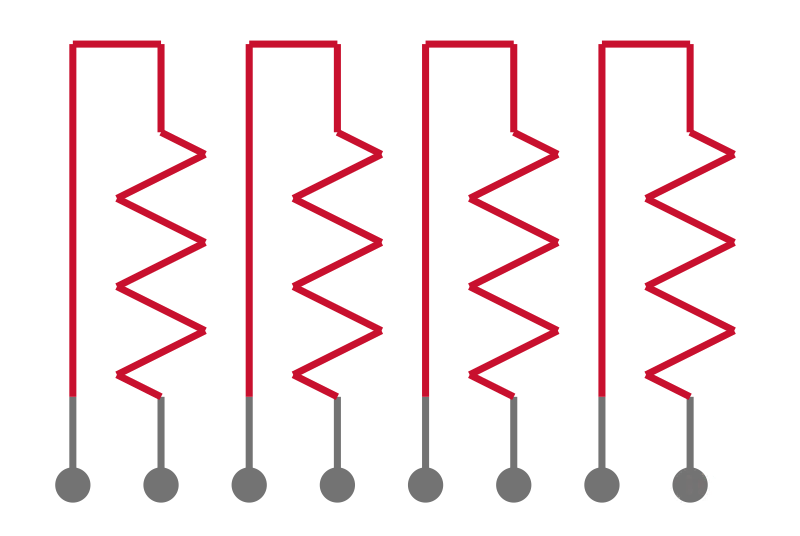

4 - 隔离器

欧时:
### 4 - 隔离电阻器70°C 时功率 | 0.3W（单个），1.0W（总体） ---|--- 最大工作电压 | 100V 直流 尺寸（长 x 宽 x 高） | 20.27 x 2.49 x 5.08 mm 引线间距 | 2.54mm 电阻容差 | ±2 % 温度系数 | ±100 ppm/°C 温度系数记录 | ±50 ppm/°C 工作温度 | -55°C → +125°C ### SIL 和 DIL 封装 - 已隔离

得捷:
RES ARRAY 4 RES 4.7K OHM 8SIP

e络盟:
固定阵列电阻, 4.7 kohm, 4608X系列, 4 元件, 隔离, SIP, 8 引脚

艾睿:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Allied Electronics:
Resistor; 4.7 Kilohms; 1 W; 2 %; 100 V Max.; 100 ppm/ DegC; SIP

Jameco:
Resistor Thick Film Network 4.7K Ohm 2% 1 Watt ±100ppm/C Isolated Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

安富利:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/°C ISOL Conformal 8-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/℃ ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: Y; 4.7kΩ; No.of resistors:4; THT; 0.3W; ±2%; 100V

Verical:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4608X-102-472LF  Fixed Network Resistor, Isolated, 4.7 kohm, 100 V, 4 Elements, Isolated, SIP, 300 mW

MASTER:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 4.7K Ohm 2% 1W ±100ppm/°C ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
