AMP FROM TE CONNECTIVITY 4-881545-2 跳线/短路器/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t
2(1 x 2) 针位分路 黑色 顶部开口,夹具 0.100"(2.54mm) 锡
得捷:
SHUNT LP W HANDLE 2 POS SN
贸泽:
Headers & Wire Housings SHUNT .100 02P BLK SN HNDL
e络盟:
跳线/短路器/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t
艾睿:

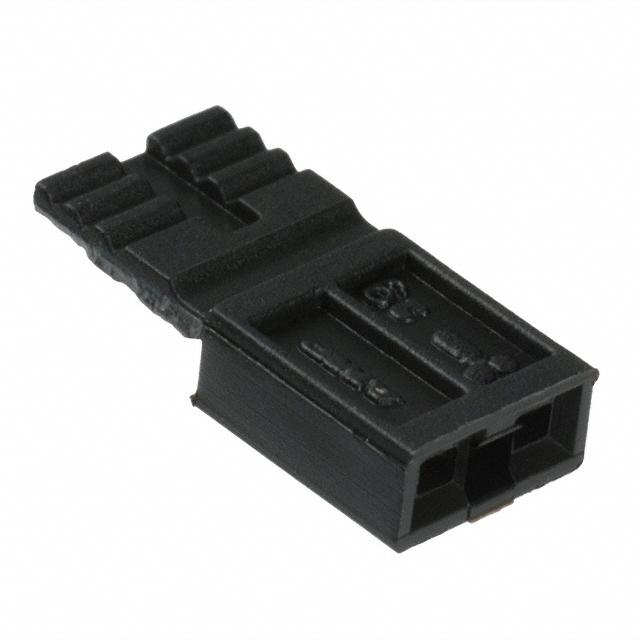

In situations where you are required to run components in a parallel or short-circuit layout, the 4-881545-2 connector from TE Connectivity can help you. This F connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a female type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. 4-881545-2 is housed in black nylon. This product is 5.08 mm long, 10.9 mm tall and 2.5 mm deep.
Allied Electronics:
Female Straight Black Handle; Open Top 2 Way 1 Row 2.54mm Pitch
Jameco:
Connector Shunt Female 2 Position 2.54mm Straight Loose Piece
安富利:
Conn Shunt F 2 POS 2.54mm ST Loose Piece
Chip1Stop:
Conn Shunt F 2 POS 2.54mm ST Loose Piece
Verical:
Conn Shunt F 2 POS 2.54mm ST Bag
Newark:
# AMP - TE CONNECTIVITY 4-881545-2 Jumper Busbar, Shunt, Shunt, 7600 Series Programmable Shunt type, 2 Positions, 2.54 mm
MASTER:
AMP SHUNT LOW PROFILE CONN ASSY
Powell:
Post Shunts
Electro Sonic:
AMP SHUNT ASS"Y
触点数 2
极性 Female
触点电镀 Tin
额定电流 3 A
排数 1
易燃性等级 UL 94 V-0
针脚数 2
触点额定电流 3.00 A
额定电流Max 3A/触头
接触电阻Max 15 mΩ
封装 100
引脚间距 2.54 mm
长度 5.08 mm
宽度 10.9 mm
高度 10.9 mm
封装 100
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536698000
